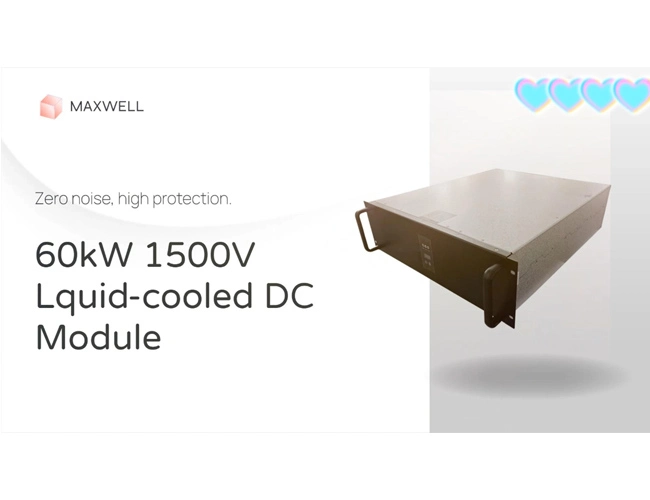

The MXR150060BL Liquid-Cooled Power Module utilizes third-generation silicon carbide (SiC) semiconductors as its core components, offering zero noise, high protection, and a universal design. Specifically designed for the new energy charging and energy storage market, it features an ultra-wide constant power range (375-1500V DC), making it compatible with multiple voltage platforms and widely applicable in EV fast charging, energy storage systems, and high-power industrial power supplies.
| Product Model | MXR150060BL | |
| Input Characteristics | Voltage Range | 260Vac~530Vac, 3P+PE |
| Current Range | <115A, 45Hz~65Hz | |
| Power Factor | >0.99(Load≥50%) | |
| Current Harmonics | <5%(Loading≥50%) | |
| Output Characteristics | Output Power | 60kW |
| Voltage Range | 200Vdc~1500Vdc | |
| Current Range | 0~160A | |
| Stabilized Voltage Precision | <±0.5% | |
| Steady Flow Accuracy | <±1% | |
| Ripple Factor | <1% | |
| Liquid System | Flow | ≥10L/min |
| Water Pressure Drop | ＜50kPa @10LPM | |
| Maximum Inlet Pressure | 500kPa | |
| Coolant | Mix ethylene glycol and water in a ratio of 1:1 | |
| Inlet Temperature | -40～70℃ (-40-50℃, can operate at full power, 50-70℃ derated) | |
| Environmental Specifications | Operating Temperature | Temperature:-40～70℃; humidity：＜95% |
| Storage Temperature | Temperature:-40～70℃; humidity：＜95% | |
| Altitude | 2000m | |
| Basic Specifications | Size(W×D×H) | 410×500×132mm |
| Weight | <47kg | |
| Peak Efficiency | 96.50% | |
| Cooling Mode | Liquid cooling | |
| Communication Method | CAN | |
| Emergency Stop Signal | No external signal or external 0V signal: the module works normally. External 12V signal: the module shuts down | |
| Parallel Quantity | ≤60 pieces | |
| Standby Power Consumption | 12W |
