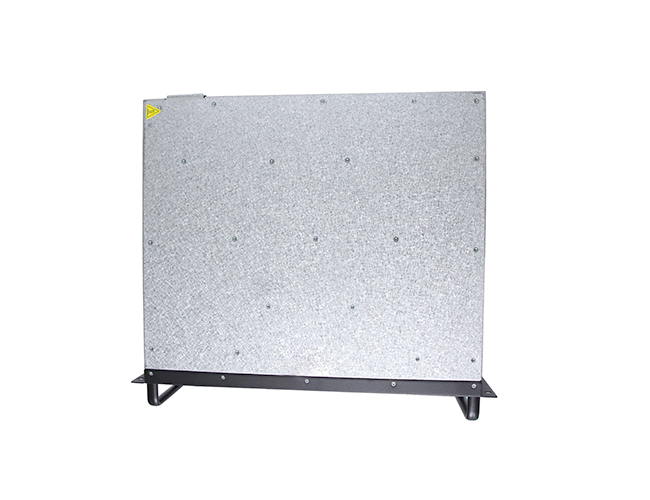

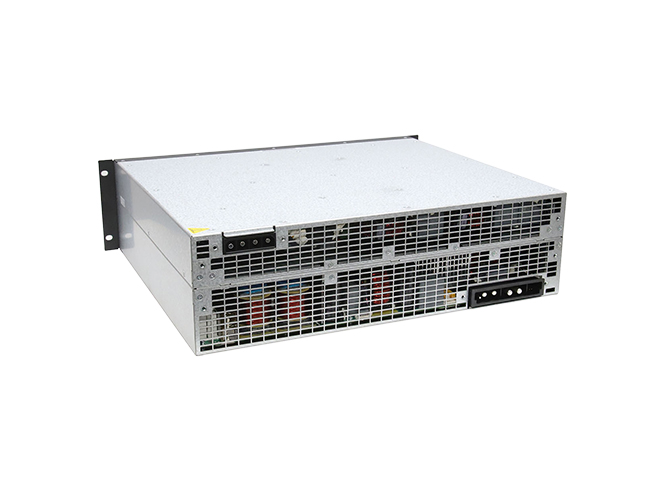

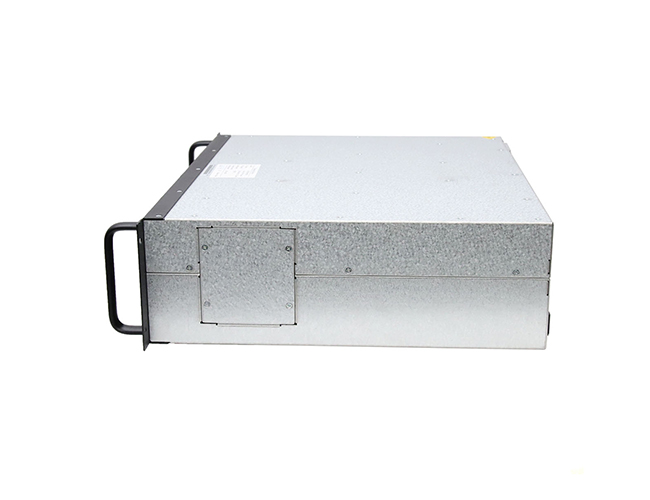

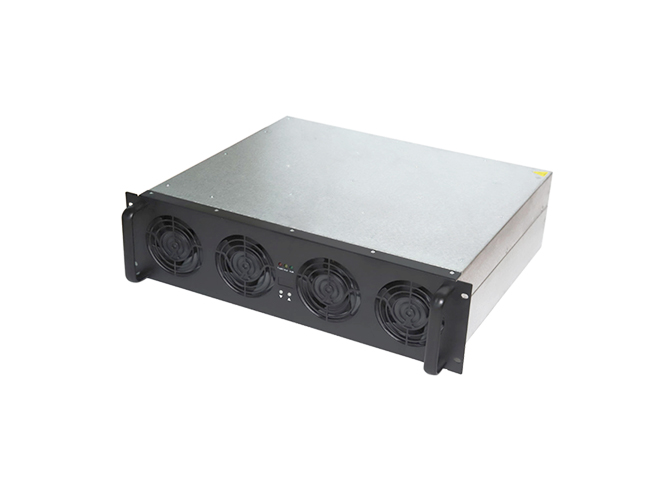

The MXR25050B is a low voltage high cuttent good performance ACDC power module for EV charging systems. It supports 260–530Vac input, delivers 0–200Vdc output up to 250A, and features over 96.5% efficiency with noise below 55dB. Compact and reliable, it’s ideal for DC charging stations and integrated charging solutions.
| Module | MXR200050B | |
| Input Characteristics | Input Voltage | 260-530Vac 3 Phase + PE（Also be compatible for DC Input） |
| Input Current | <95A | |
| Power Factor | ≥0.99(Load≥50%) | |
| ITHD | ≤3%(Load≥50%) | |
| Output Characteristics | Output Power | 50kW |
| Voltage Range | 0～2000Vdc Continuously Adjustable | |
| Current Range | 0～100A Continuously Adjustable | |
| Voltage Regulation accuracy | ≤±0.3% | |
| Stabilized Current accuracy | ≤±0.3% | |
| Ripple Peak | ≤0.3% | |
| Environmental Conditions | Operating Temperature | -40℃～75℃ |
| Altitude | 5000m | |
| MTBF | >100000 hours | |
| Basic Indicators | Size(W×D×H) | 440×430×125mm |
| Weight | <24kg | |
| Efficiency(full load) | >97% | |
| Cooling Method | Forced air cooling | |
| Protection Level | IP20 | |
| Noise | ≤55dB(In silent mode) | |
| Communication | CAN bus & RS485 | |
| Parallel Quantity | ≤60 pieces | |
| Indicator | Green: normal operation Yellow: alarm Red: fault LED digital tube |
Wide Input Voltage Range: 260–530Vac, compatible with various grid conditions for stable operation
Adjustable Output Voltage: 0–200Vdc, adaptable to different EV battery voltage requirements
High Output Current: Up to 250A, ideal for fast-charging applications requiring high power
High Efficiency: >96.5%, reducing energy loss and improving overall system performance
Low Input Current: Less than 95A, minimizing impact on the power grid
Low Noise Operation: Below 55dB, suitable for urban and commercial charging environments
Compact Modular Design: Easy integration, installation, and maintenance in charging stations
The MXR25050B offers high efficiency, strong output capability, and excellent adaptability, making it a core power module for DC fast chargers, distributed charging systems, and other EV charging applications
