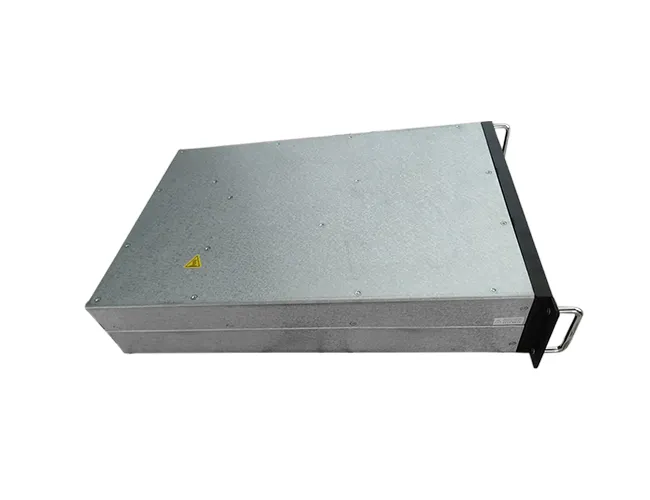

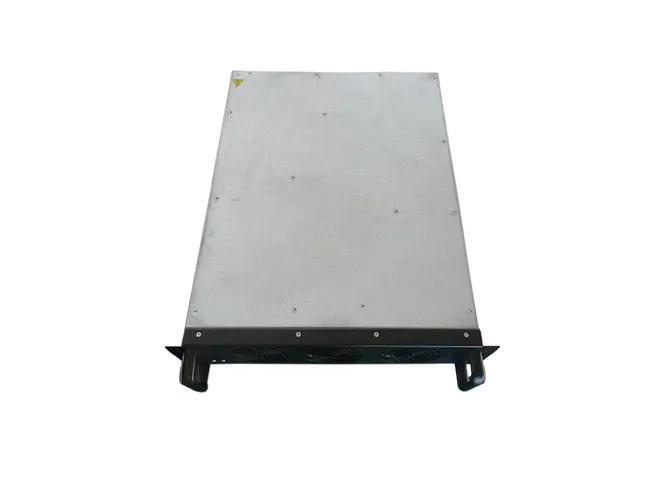

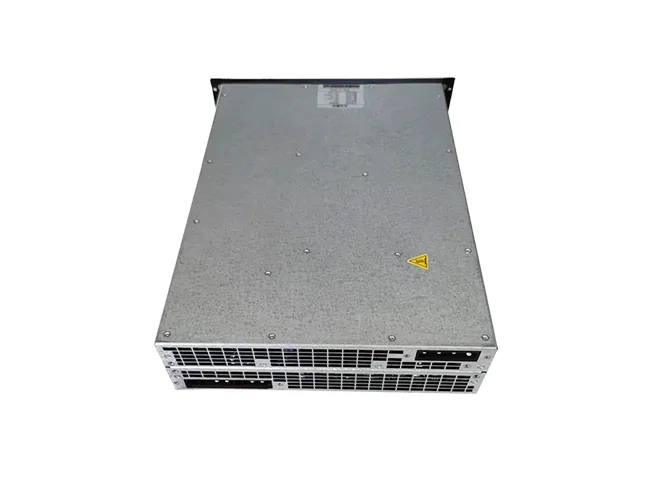

The MXC1500100B is a 100kW high-voltage DC/DC converter built for 1500V solar-plus-storage networks. Its high-efficiency architecture enhances PV energy utilization, while precise charge-discharge control ensures stable operation in utility-scale systems. With strong protection logic and excellent parallel scalability, it supports high-density renewable installations and long-run grid applications.
| Module | MXC1500100B | |
| Input Characteristics | Voltage Range | 1040VDC～1500VDC |
| Maximum Current | 66.7A | |
| Stabilized Voltage Precision | ≤±0.5% | |
| Stabilized Current Precision | ≤±1％ (Output Load 20% - 100%Rated Range) | |
| Current Imbalance | ≤5% | |
| Output Characteristics | Output Power | 100kW |
| Voltage Range | 800Vdc～850Vdc | |
| Maximum Current | 125A | |
| Stabilized Voltage Precision | ≤±0.5% | |
| Stabilized Current Precision | ≤±1％ (Output Load 20% - 100%Rated Range) | |
| Ripple Peak Value | ≤1% | |
| Current Imbalance | ≤5% | |
| Environmental Conditions | Operating Temperature | －40℃～＋75℃，Above 50℃ will be derated |
| Altitude | ≤2000m，Above 2000m will be derated | |
| Basic Indicators | Dimension | 345mm*500mm*87mm (W*D*H) |
| Weight | <20kg | |
| Efficiency | >98.5% | |
| Cooling Method | Fan Cooling | |
| Communication | CAN Bus | |
