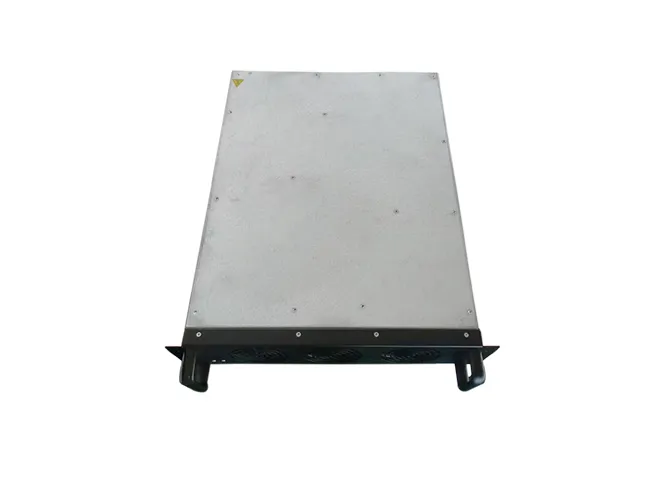

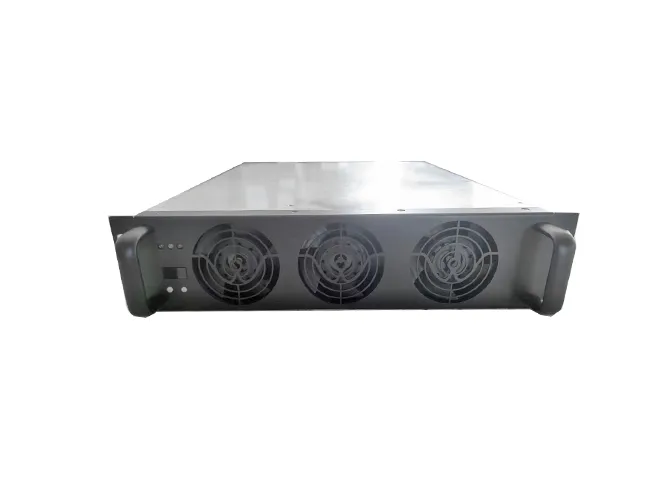

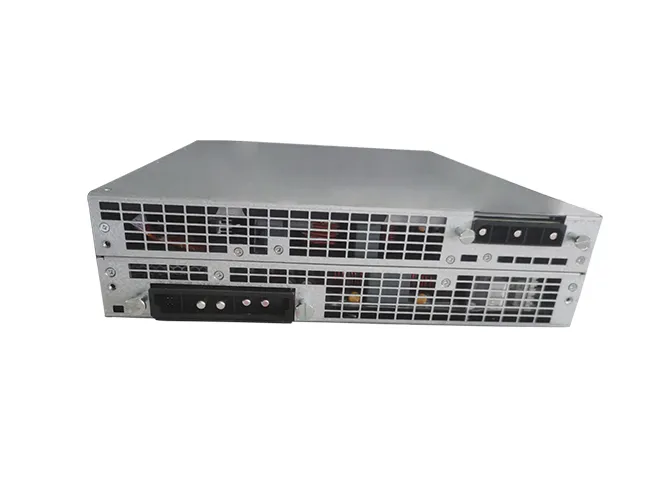

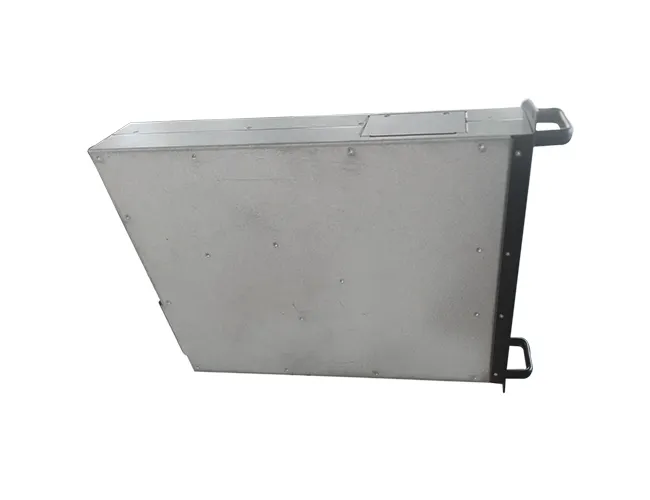

The MXC950100B is a 100kW isolated DC/DC converter designed for 950V high-voltage applications requiring stable and efficient bidirectional power transfer. Its high-frequency design reduces switching losses and maintains steady output under rapidly changing load conditions. With reinforced isolation, strong thermal performance, and reliable digital control, it supports EV charging hubs, energy storage buffers, and other high-demand DC platforms that require long-term operational stability.
| Module | MXC950100B | |
| Input Characteristics | Voltage Range | 300VDC～950VDC (constant power range 833Vdc-950Vdc ) |
| Maximum Current | 120A | |
| Stabilized Voltage Precision | ≤±0.5% | |
| Stabilized Current Precision | ≤±1％ (Output Load 20% - 100%Rated Range) | |
| Current Imbalance | ≤5% | |
| Output Characteristics | Output Power | 100kW |
| Voltage Range | 740Vdc～860Vdc (constant power range 800Vdc-860Vdc) | |
| Maximum Current | 125A | |
| Stabilized Voltage Precision | ≤±0.5% | |
| Stabilized Current Precision | ≤±1％ (Output Load 20% - 100%Rated Range) | |
| Ripple Peak Value | ≤1% | |
| Current Imbalance | ≤5% | |
| Environmental Conditions | Operating Temperature | －20℃～＋75℃，Above 50℃ will be derated |
| Altitude | ≤2000m，Above 2000m will be derated | |
| Basic Indicators | Dimension | 345mm*500mm*87mm (W*D*H) |
| Weight | <20kg | |
| Efficiency | >98.5% | |
| Isolation Method | High Frequency Isolation | |
| Cooling Method | Fan Cooling | |
| Communication | CAN Bus | |
| Parallel | <60 | |
