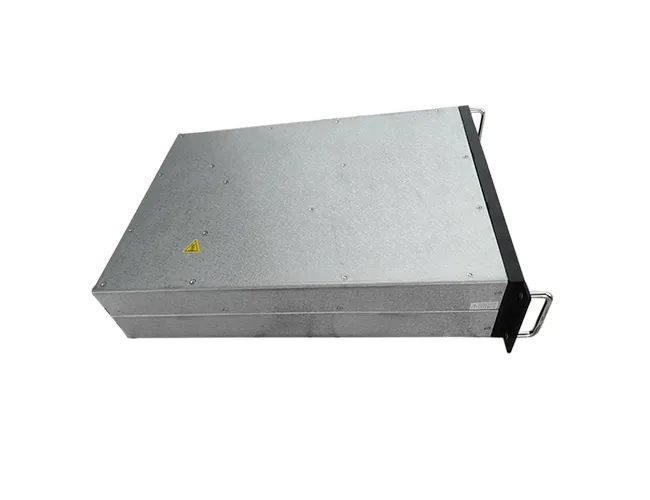

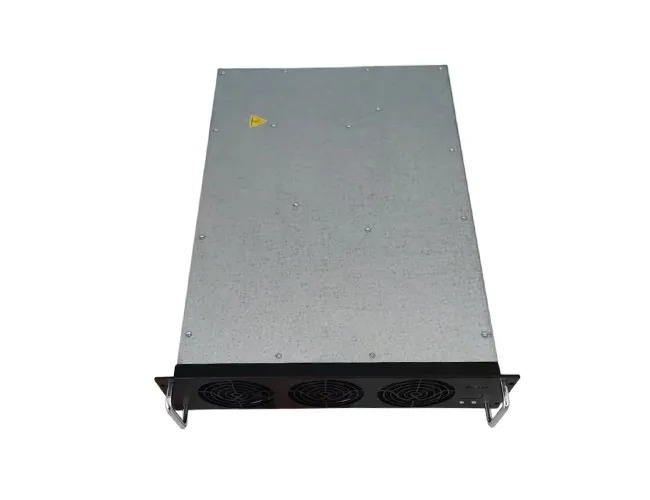

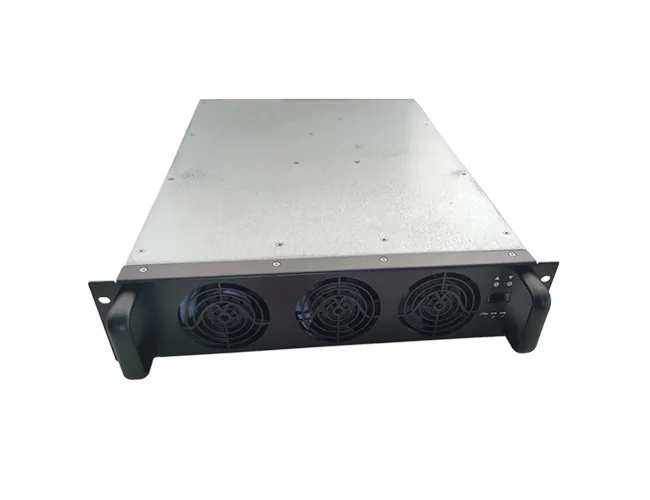

The MXC1250100B is a 100kW 1250V bidirectional module designed for utility-grade ESS, offering stable current distribution and strong thermal resilience. Its wide voltage window supports diverse battery chemistries and large energy blocks, enabling efficient power routing across renewable clusters and DC bus systems. Its scalable design meets the needs of long-duration storage deployments.
| Module | MXC1250100B | |
| Input Characteristics | Voltage Range | 300VDC～1250VDC |
| Maximum Current | 80A | |
| Stabilized Voltage Precision | ≤±0.5% | |
| Stabilized Current Precision | ≤±1％ (Output Load 20% - 100%Rated Range) | |
| Current Imbalance | ≤5% | |
| Output Characteristics | Output Power | 100kW |
| Voltage Range | 740Vdc～860Vdc (constant power range 800Vdc-860Vdc) | |
| Maximum Current | 125A | |
| Stabilized Voltage Precision | ≤±0.5% | |
| Stabilized Current Precision | ≤±1％ (Output Load 20% - 100%Rated Range) | |
| Ripple Peak Value | ≤1% | |
| Current Imbalance | ≤5% | |
| Environmental Conditions | Operating Temperature | －20℃～＋75℃，Above 50℃ will be derated |
| Altitude | ≤2000m，Above 2000m will be derated | |
| Basic Indicators | Dimension | 345mm*500mm*87mm (W*D*H) |
| Weight | <20kg | |
| Efficiency | >98.5% | |
| Isolation Method | High Frequency Isolation | |
| Cooling Method | Fan Cooling | |
| Communication | CAN Bus | |
| Parallel | <60 | |
