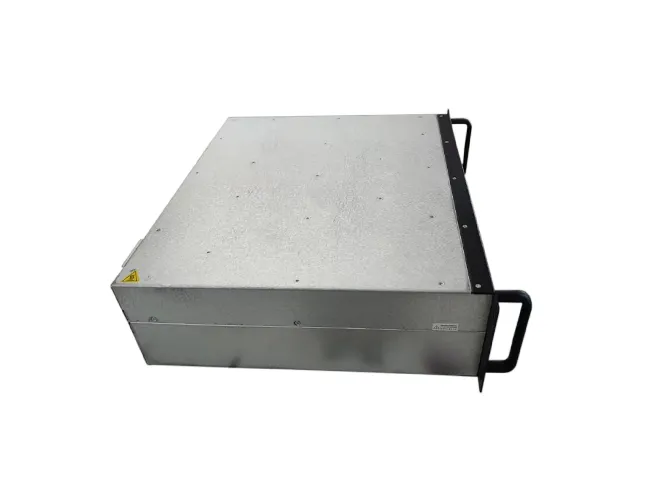

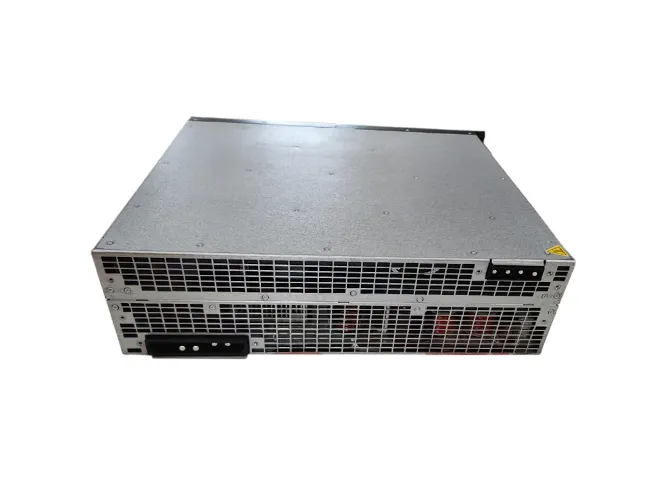

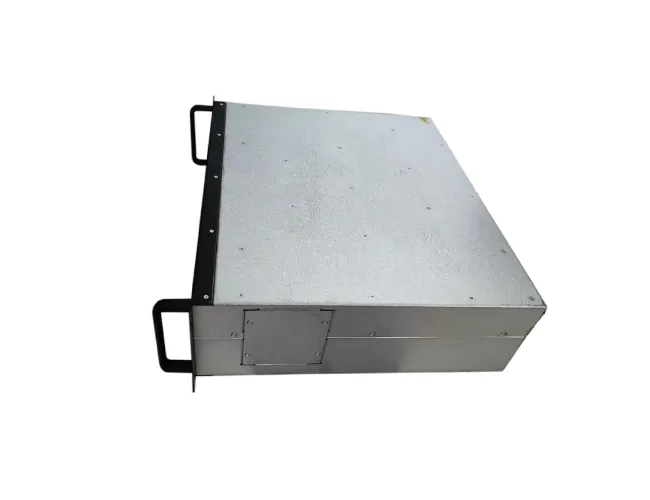

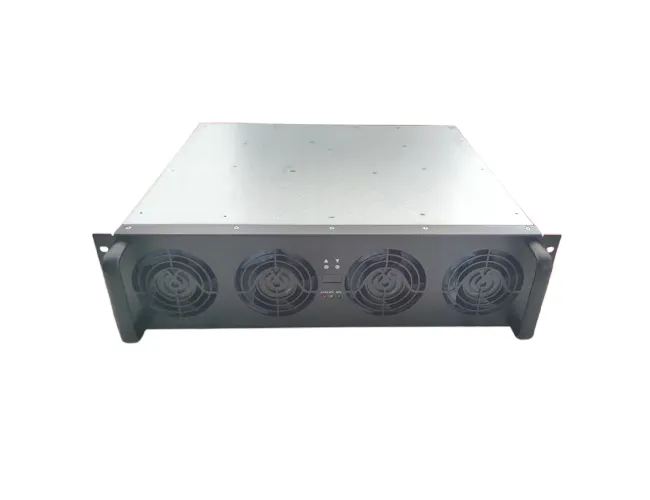

The MXR820100B is a high-performance 100 kW AC DC converter specially designed for electrolytic hydrogen production systems. Featuring 97.5% peak efficiency, ultra-high power density (71 W/in³), and strong reliability (MTBF > 1 million hours), it ensures stable DC output up to 820 V. With advanced digital control, CAN communication, and wide temperature adaptability (-40 °C to 75 °C), this module offers excellent performance, easy maintenance, and high protection for demanding hydrogen generation applications.
| Module | MXR820100B | |
| Input Characteristics | Input Voltage | 508Vac～622Vac, 3 Phase + PE |
| Input Current | ＜120A | |
| Power Factor | ≥0.99(Load≥50%) | |
| ITHD | ≤5%(Load≥50%) | |
| Output Characteristics | Output Power | 100kW |
| Voltage Range | 0～820Vdc Continuously Adjustable | |
| Current Range | 0～125A Continuously Adjustable | |
| Voltage Regulation accuracy | ≤±0.5％ | |
| Stabilized Current accuracy | ≤±1％ | |
| Ripple Peak | ≤1% | |

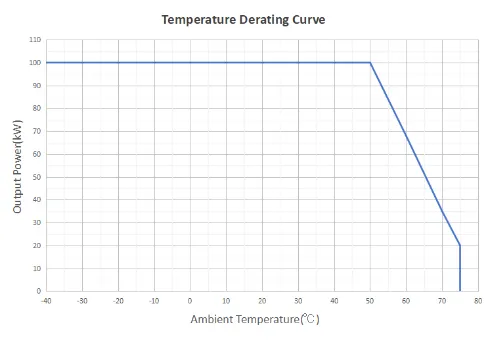

| Environmental Conditions | Operating Temperature | -40℃～75℃ |
| Altitude | 5000m | |
| MTBF | >1000000 hours | |
| Basic Indicators | Size(W×D×H) | 440×430×125mm |
| Weight | <26kg | |
| Cooling Method | FAN Cooling | |
| Communication | CAN (Main CAN + Optional CAN) | |
| Isolation | Input isolation & Output isolation | |
| Max Airflow | 378CFM | |
| Peak Efficiency | ＞97.5% | |
| Parallel | ≤100 PCs | |
