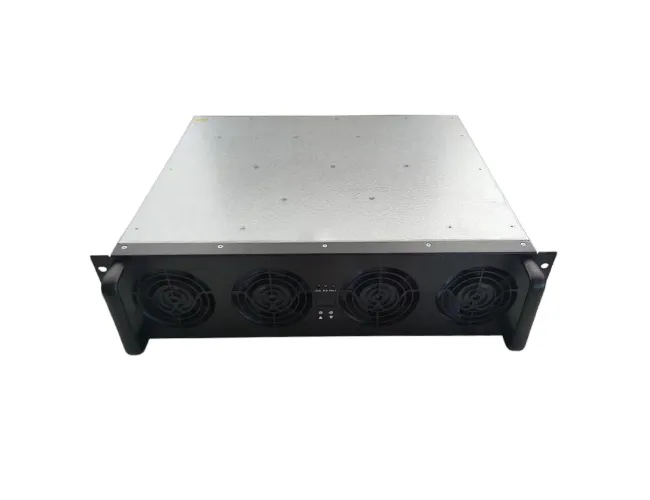

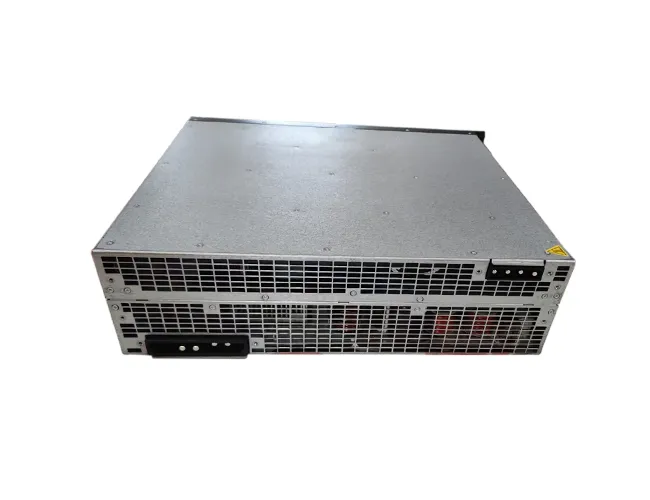

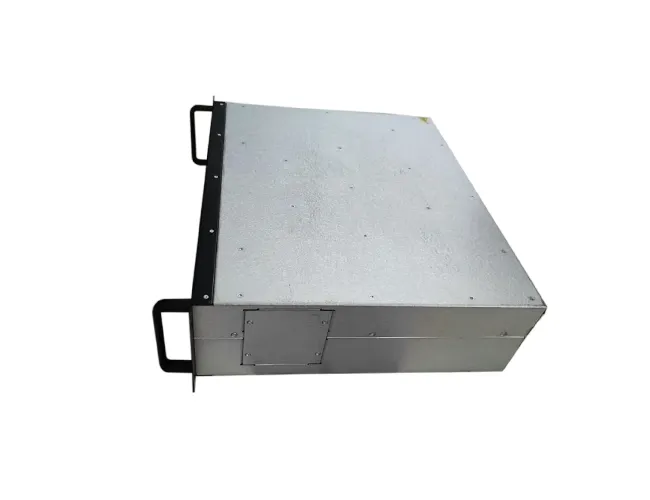

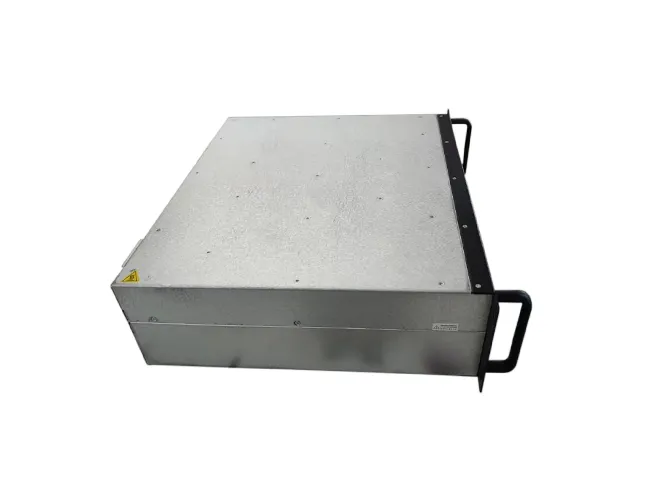

The MXR500100B delivers efficient and precise AC to DC conversion for hydrogen production systems. With a 100kW output and adjustable 0–500V DC range, it achieves 97.5% peak efficiency and a power factor of 0.99. Its robust digital control, high reliability, and fan-cooled compact design ensure stable operation even in harsh environments. Perfect for industrial hydrogen electrolyzers requiring dependable, high-density power conversion.
| Module | MXR500100B | |

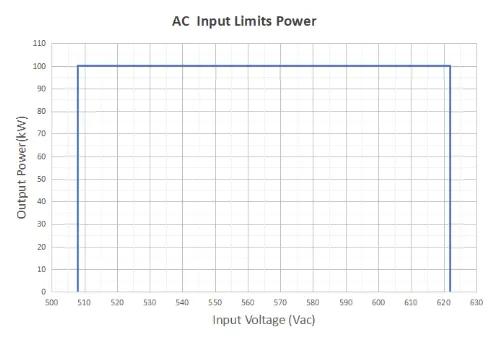

| Input Characteristics | Input Voltage | 508Vac～622Vac, 3 Phase + PE |
| Input Current | ＜120A | |
| Power Factor | ≥0.99(Load≥50%) | |
| ITHD | ≤5%(Load≥50%) | |
| Output Characteristics | Output Power | 100kW |

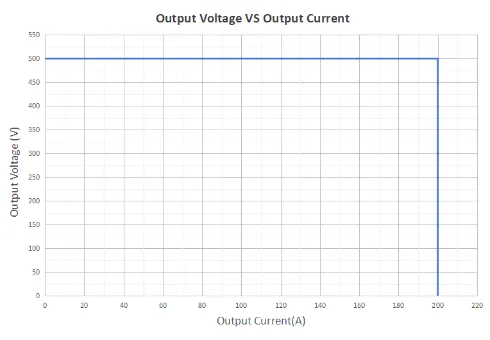

| Voltage Range | 0～500Vdc Continuously Adjustable | |
| Current Range | 0～200A Continuously Adjustable | |
| Voltage Regulation accuracy | ≤±0.5％ | |
| Stabilized Current accuracy | ≤±1％ | |
| Ripple Peak | ≤1% | |

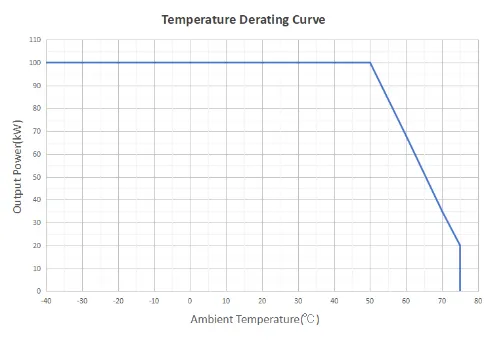

| Environmental Conditions | Operating Temperature | -40℃～75℃ |
| Altitude | 5000m | |
| MTBF | >1000000 hours | |
| Basic Indicators | Size(W×D×H) | 440×430×125mm |
| Weight | <26kg | |
| Cooling Method | FAN Cooling | |
| Communication | CAN (Main CAN + Optional CAN) | |
| Isolation | Input isolation & Output isolation | |
| Max Airflow | 378CFM | |
| Peak Efficiency | ＞97.5% | |
| Parallel | ≤100 PCs | |
