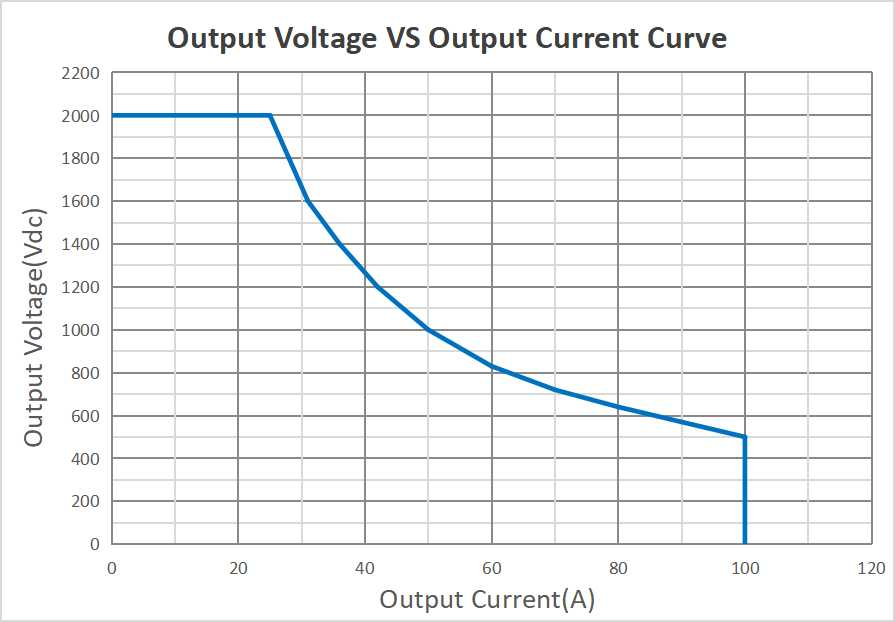

This 50kW 2000V EV charging module features an ultra-wide operating voltage range (0-2000V) and constant power range (500-2000V), supporting both AC and DC inputs for versatile compatibility. With an ultra-high reliability of MTBF over 1,000,000 hours, it ensures long-term stable operation. The module operates quietly under 55dB and supports CAN and RS-485 communication protocols for seamless integration with charging management systems, delivering efficient, quiet, and intelligent charging solutions.
| Module | MXR25050B | |

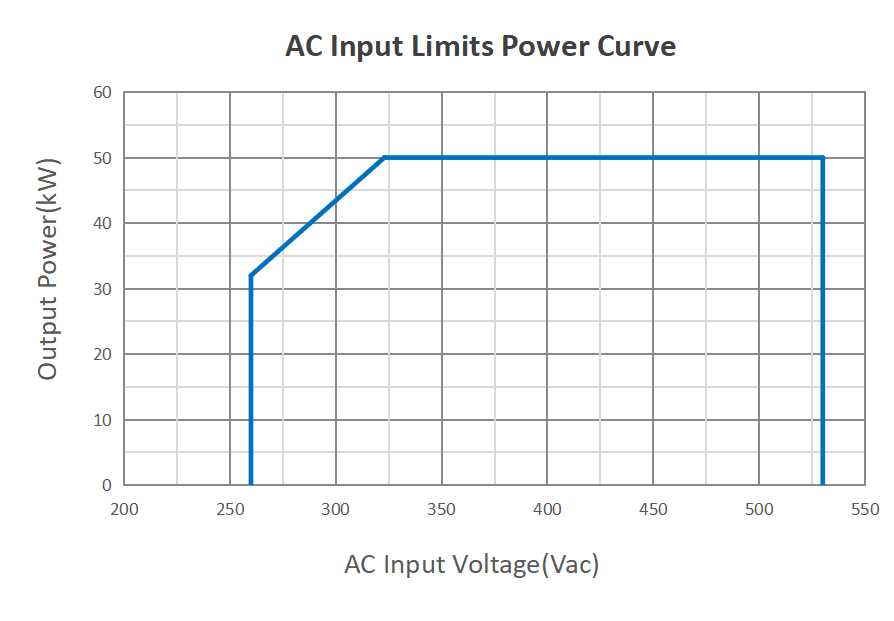

| Input Characteristics | Input Voltage | 260-530Vac 3P+PE (Compatible with DC input) |
| Input Current | <95A | |
| Power Factor | ≥0.99(Load≥50%) | |
| ITHD | ≤3%(Load≥50%) | |
| Output Characteristics | Output Power | 50kW |
| Voltage Range | 0～200Vdc Continuously Adjustable | |
| Current Range | 0～250A Continuously Adjustable | |
| Overload Capacity | Support 1.3 times overload capacity, the time is not less than 1 minute. | |
| Voltage Regulation accuracy | ≤±0.3% | |
| Stabilized Current accuracy | ≤±0.3% | |
| Ripple Peak | ≤0.3% | |

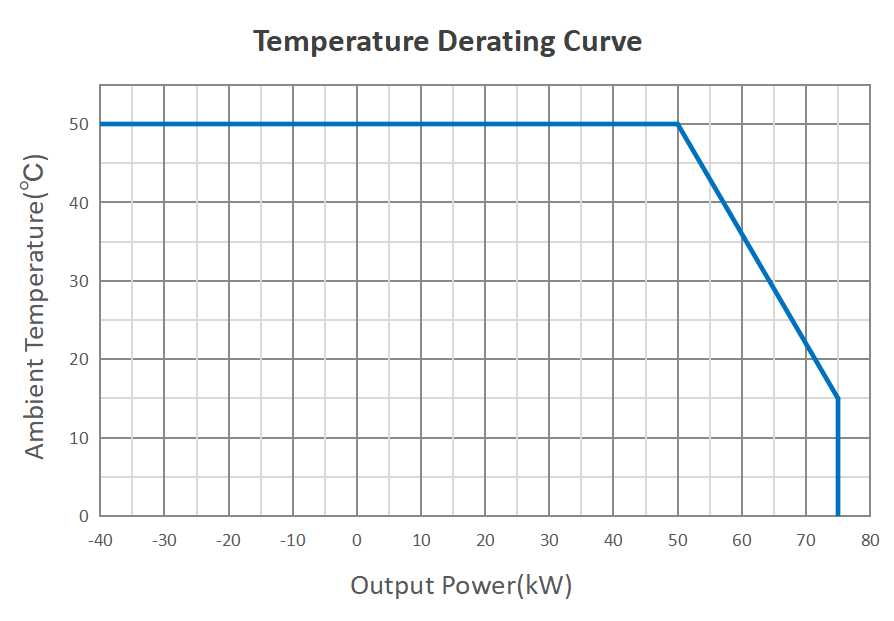

| Environmental Conditions | Operating Temperature | -40℃～60℃～75℃ (Full Power below 60℃, Derating to 30% at 75℃) |
| Altitude | 5000m | |
| MTBF | >100000 hours | |
| Basic Indicators | Size(W×D×H) | 440×380×125mm |
| Weight | <23kg | |
| Efficiency(full load) | >96.5% | |
| Cooling Method | Fan cooling | |
| Protection Level | IP20 | |
| Noise | ≤55dB(In silent mode) | |
| Communication | CAN bus & RS485 | |
| Parallel Quantity | ≤60 pieces | |
| Indicator | Green: normal operation Yellow: alarm Red: fault LED digital tube |
