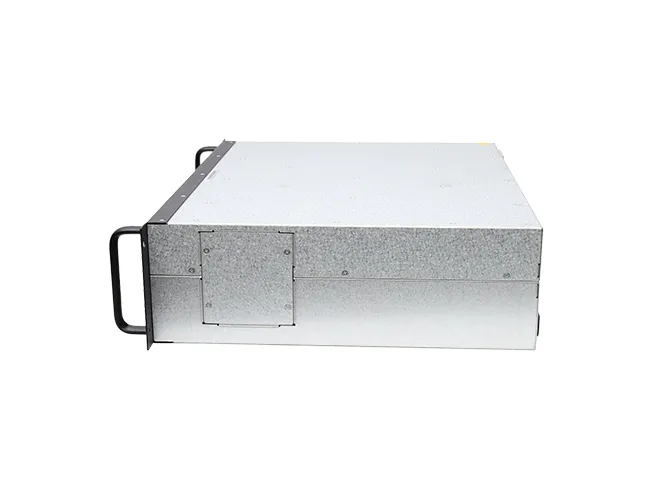

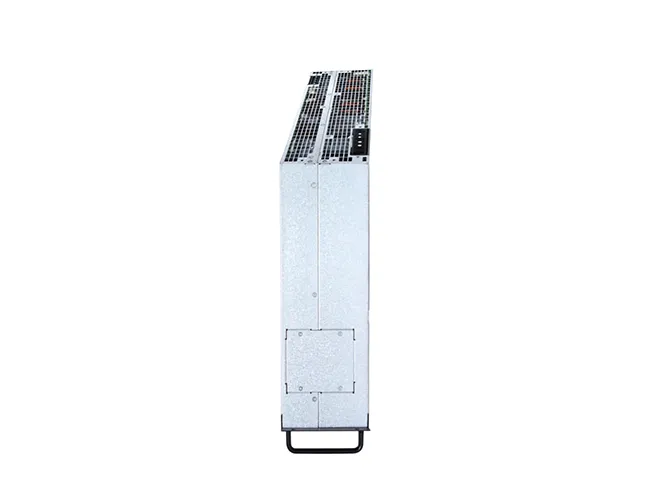

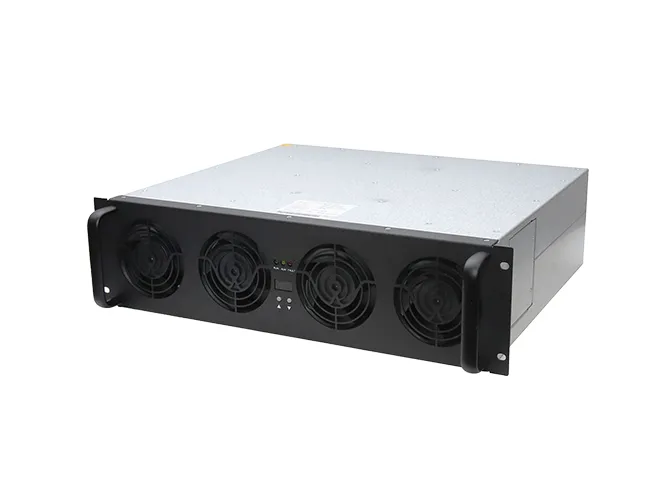

The MXR150060B-850 is a 60kW air-cooled AC-DC converter module designed for ultra-fast EV charging and energy storage systems. Featuring support for up to 850Vac input, 1500Vdc output, 97% efficiency, and MTBF >1 million hours, it offers exceptional performance, reliability, and grid adaptability. Ideal for heavy-duty EV charging stations, high-voltage ESS, and integrated solar + storage + charging solutions.
| Module | MXR150060B-850 | |

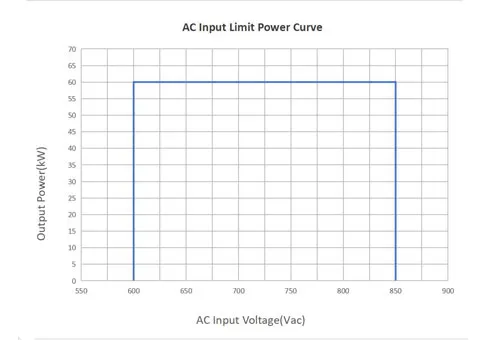

| Input Characteristics | Input Voltage | 600Vac～850Vac, 3 Phase +PE |
| Input Current | <61A | |
| Power Factor | ≥0.99(Load≥50%) | |
| ITHD | ≤3%(Load≥50%) | |
| Output Characteristics | Output Power | 60kW |
| Voltage Range | 0～1500Vdc Continuously Adjustable | |
| Current Range | 0～200A Continuously Adjustable | |
| Voltage Regulation accuracy | ≤±0.3% | |
| Stabilized Current accuracy | ≤±0.3% | |
| Ripple Peak | ≤0.3% | |

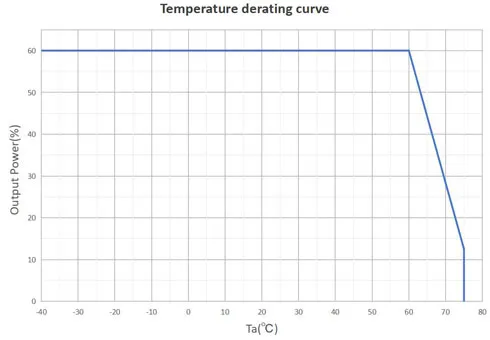

| Environmental Conditions | Operating Temperature | -40℃～75℃ （Full power below 60℃, derated to 30% at 75℃） |
| Altitude | 5000m | |
| MTBF | >1000000 hours | |
| Basic Indicators | Size(W×D×H) | 440×450×125mm |
| Weight | <29kg | |
| Efficiency(full load) | >97% | |
| Cooling Method | Forced air cooling | |
| Noise | ≤60dB(In silent mode) | |
| Communication | CAN | |
| Parallel Quantity | ≤60 pieces | |
| Indicator | Green: normal operation Yellow: alarm Red: fault LED digital tube |
