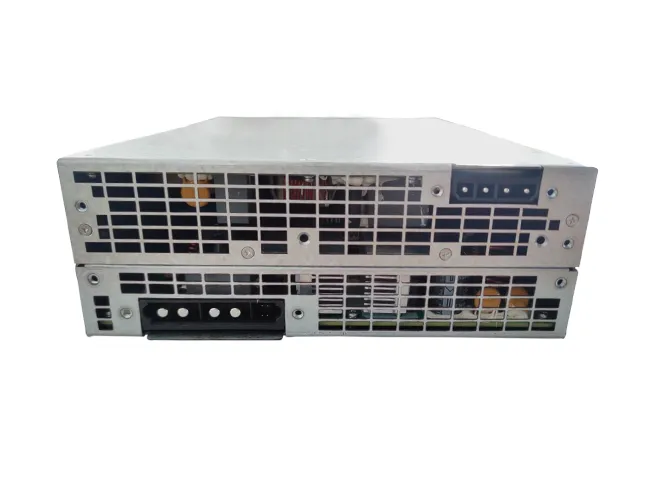

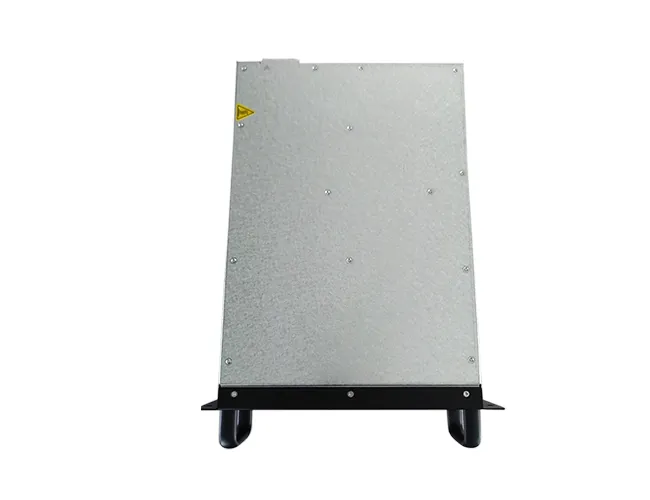

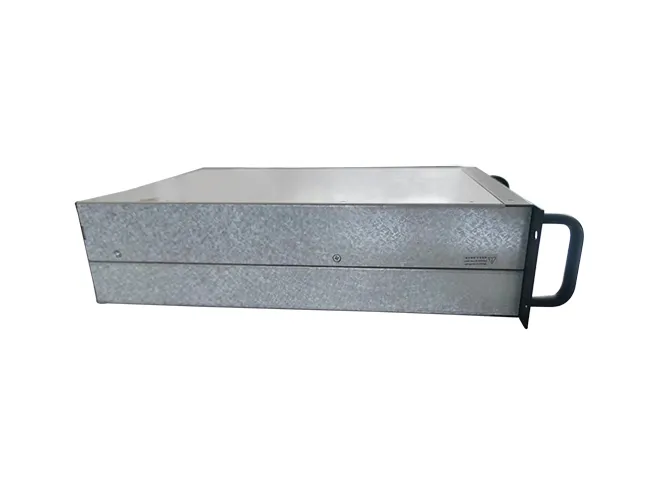

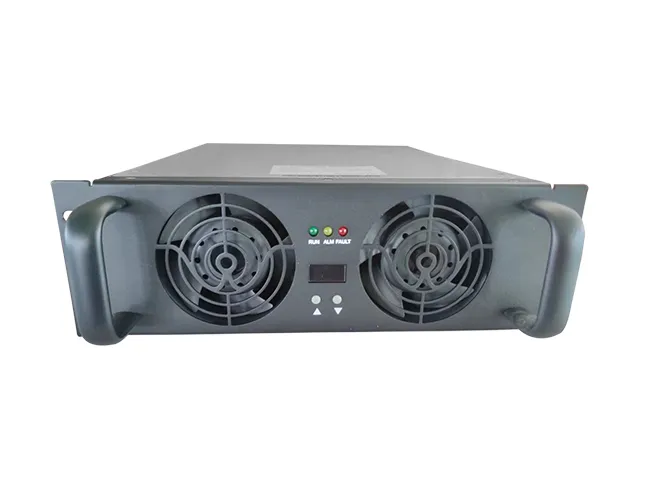

The MXR120150 is a 7kW digitally controlled DC power module with 0–120Vdc, 0–150A output. It features wide input range, high reliability, low noise (≤60dB), and a power factor ≥0.99. Built-in protections include input under/over-voltage and output over-voltage. Compact, lightweight, and suitable for various installation environments, it supports CAN and RS485, ideal for EV charging and industrial DC systems.
| Module | MXR120150 | |
| Input Characteristics | Input Voltage | 220±15%Vdc/260~530Vac（Compatible with 3 phases and DC input） |
| Input Current | <40A | |
| Power Factor | ≥0.99(Load≥50%) | |
| ITHD | ≤3%(Load≥50%) | |
| Output Characteristics | Output Power | 7kW |

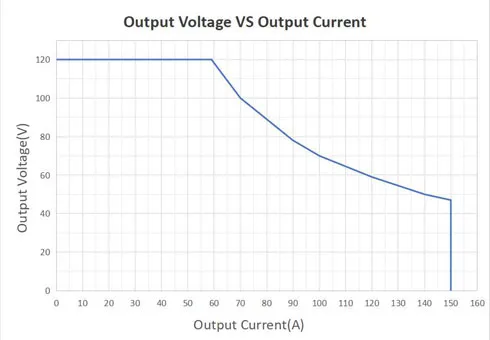

| Voltage Range | 0～120Vdc continuously adjustable | |
| Current Range | 0～150A continuously adjustable | |
| Voltage Regulation accuracy | ≤±0.5% | |
| Stabilized Current accuracy | ≤±1% | |
| Ripple Peak | ≤1% | |
| Overload Capacity | Support 1.3 times overload capacity within 1 minute | |
| Environmental Conditions | Operating Temperature | -40℃～60℃～75℃ （Full power below 60℃, derated to 30% at 75℃） |
| Altitude | 5000m | |
| MTBF | >1000000 hours | |
| Basic Indicators | Size(W×D×H) | 240×350×87mm |
| Weight | <9kg | |
| Efficiency(full load) | >97% | |
| Communication | CAN ＆ 485 |
