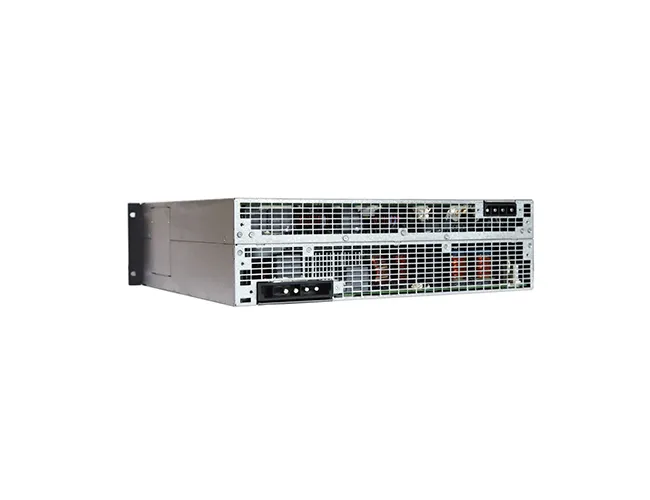

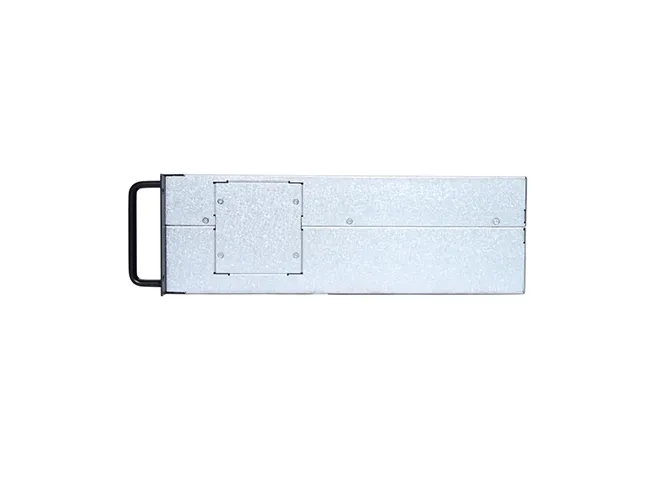

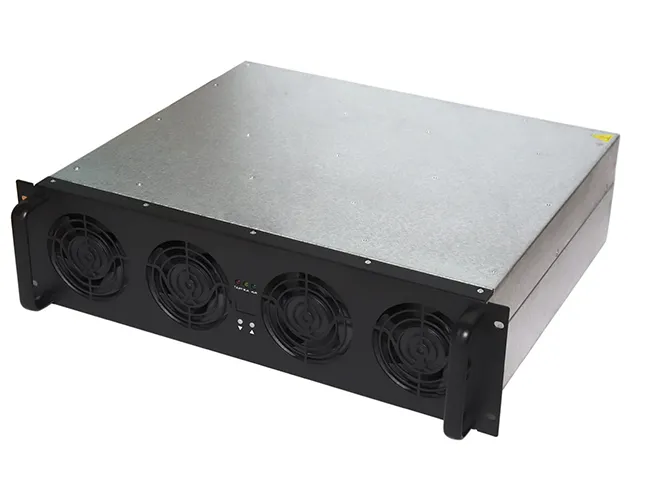

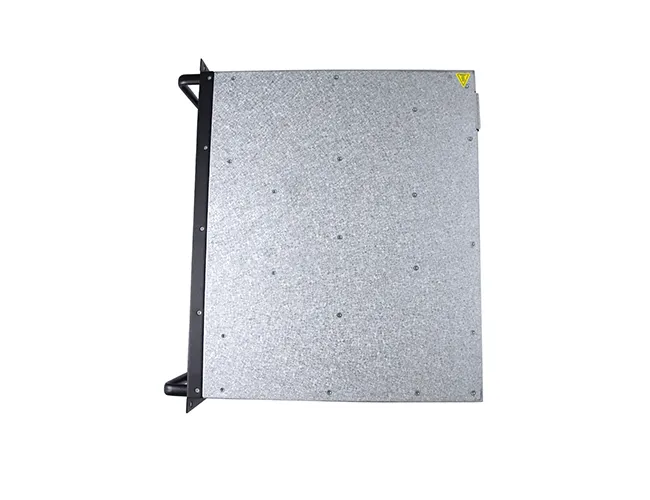

Designed for modern EV infrastructure, MXR100060B delivers 60kW output with digital control, precise voltage/current adjustment, and a wide 200–1000V range. Hot-swap capability simplifies maintenance, while advanced protections enhance safety and reduce downtime in high-demand charging environments.
| Module | MXR100060B | |

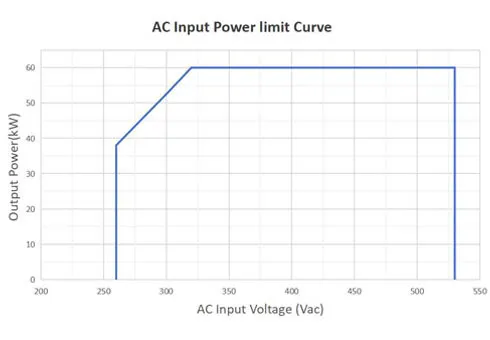

| Input Characteristics | Input Voltage | 260-530Vac 3 Phase + PE（Also be compatible for DC Input） |
| Input Current | <120A | |
| Power Factor | ≥0.99(Load≥50%) | |
| ITHD | ≤3%(Load≥50%) | |
| Output Characteristics | Output Power | 60kW |

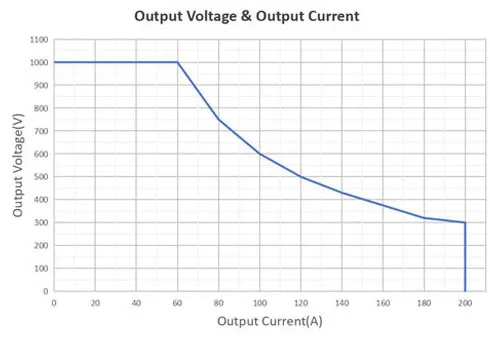

| Voltage Range | 0～1000Vdc Continuously Adjustable | |
| Current Range | 0～200A Continuously Adjustable | |
| Voltage Regulation accuracy | ≤±0.5% | |
| Stabilized Current accuracy | ≤±1% | |
| Ripple Peak | ≤1% | |
| Overload Capacity | Support 1.3 times overload capacity, the time is not less than 1 minute. | |
| Environmental Conditions | Operating Temperature | -40℃～60℃～75℃ （Full power below 60℃, derated to 30% at 75℃） |
| Altitude | 5000m | |
| MTBF | >1000000 hours | |
| Basic Indicators | Size(W×D×H) | 440×530×125mm |
| Weight | <27kg | |
| Efficiency(full load) | >97% | |
| Cooling Method | Forced air cooling | |
| Noise | ≤55dB(In silent mode) | |
| Communication | CAN | |
| Parallel Quantity | ≤60 pieces | |
| Indicator | Green: normal operation Yellow: alarm Red: fault LED digital tube |
