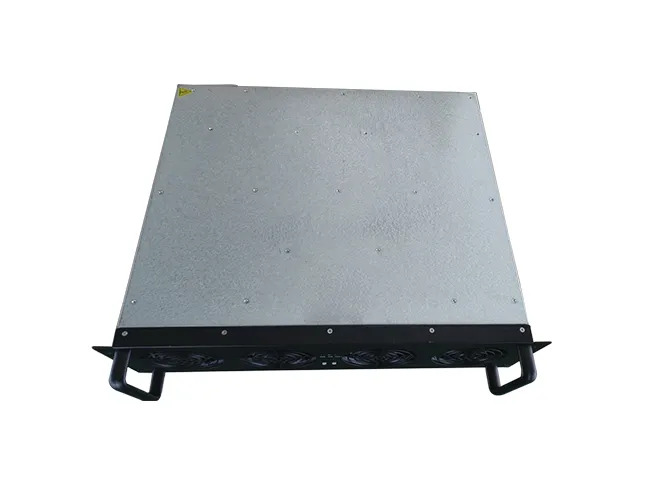

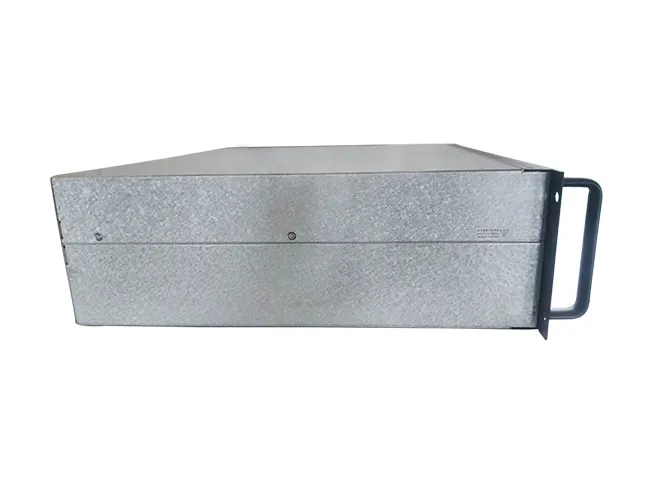

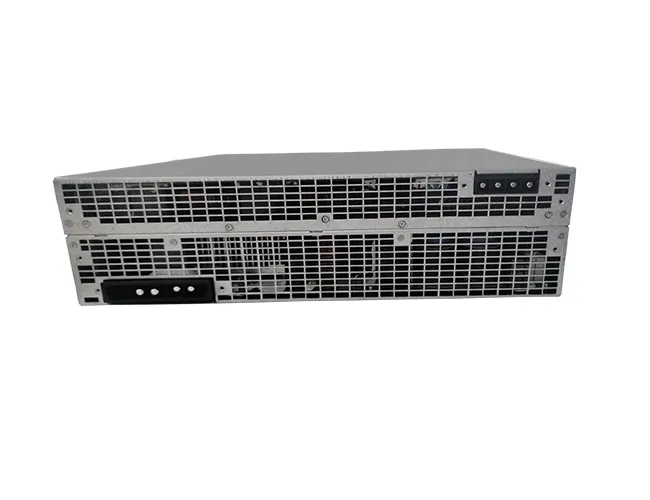

The MXR100020-S is a 20kW high-performance DC power module with 0–1000Vdc voltage and 0–167A current output, featuring high precision, low ripple, and strong overload capacity. It is ideal for EV charging stations, energy storage systems, HVDC test platforms, industrial automation, and power equipment. With CAN/RS485 communication, wide temperature operation (-40℃ to 75℃), and compact design, it ensures high reliability in demanding applications.
| Module | MXR100020-S | |
| Input Characteristics | Input Voltage | 220±15%Vac，1P+PE |
| Input Current | <100A | |
| Power Factor | ≥0.99(Load≥50%) | |
| ITHD | ≤5%(Load≥50%) | |
| Output Characteristics | Output Power | 20kW |
| Voltage Range | 0～1000Vdc Continuously Adjustable | |
| Current Range | 0～167A Continuously Adjustable | |
| Voltage Regulation accuracy | ≤±0.3% | |
| Stabilized Current accuracy | ≤±0.3% | |
| Ripple Peak | ≤0.3% | |
| Overload Capacity | Support 1.3 times overload capacity, the time is not less than 1 minute. | |
| Environmental Conditions | Operating Temperature | -40℃～75℃ |
| Altitude | 5000m | |
| MTBF | >1000000 hours | |
| Basic Indicators | Size(W×D×H) | 440×380×125mm |
| Weight | <23kg | |
| Cooling Method | Forced air cooling | |
| Communication | CAN ＆ RS485 |
