The MXH100040B 40kW EV charger module delivers ultra-high efficiency (>97%) and wide output voltage (0–1000VDC), ensuring fast, reliable charging for a variety of electric vehicles. With AC input (260–530Vac), smart communication (CAN & RS-485), and over 1 million hours MTBF, it’s built for performance and longevity. Its compact, modular design enables seamless integration into public chargers, commercial fleets, and fast-charging stations—powering the future of clean, intelligent mobility.
| Module | MXH100040B | |

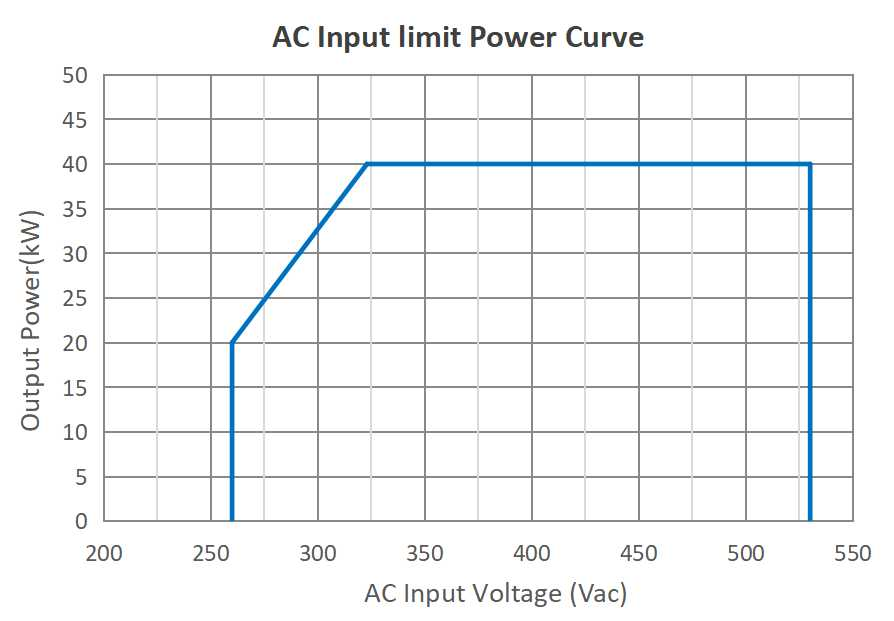

| Input Characteristics | Input Voltage | 260-530Vac 3 Phase + PE（Compatible for DC Input） |
| Input Current | <76A | |
| Power Factor | ≥0.99(Load≥50%) | |
| ITHD | ≤3%(Load≥50%) | |
| Output Characteristics | Output Power | 40kW |

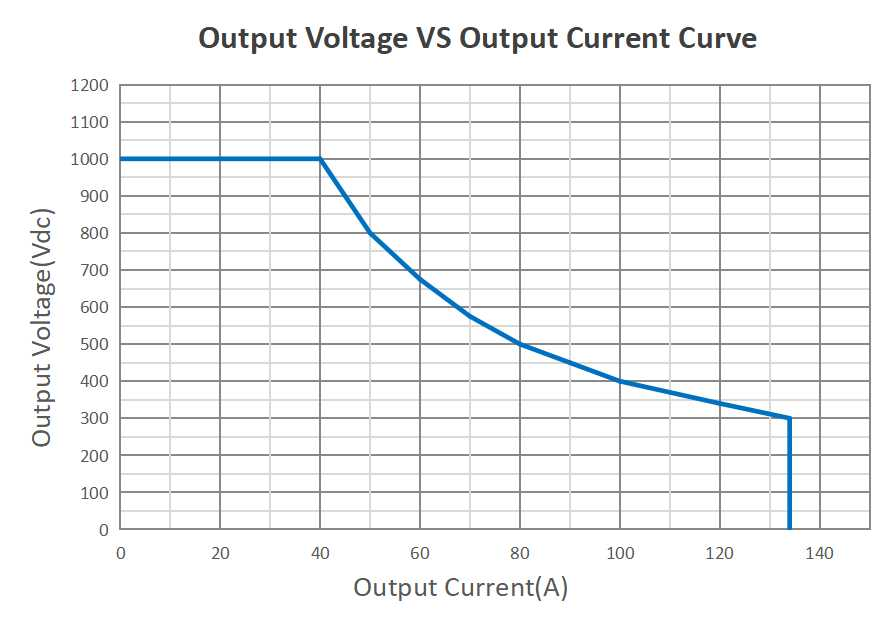

| Voltage Range | 0～1000Vdc Continuously Adjustable | |
| Current Range | 0～134A Continuously Adjustable | |
| Voltage Regulation accuracy | ≤±0.5％ | |
| Stabilized Current accuracy | ≤±1％ | |
| Current Sharing Imbalance | ≤±3% | |
| Ripple Peak to Peak | ≤1% | |

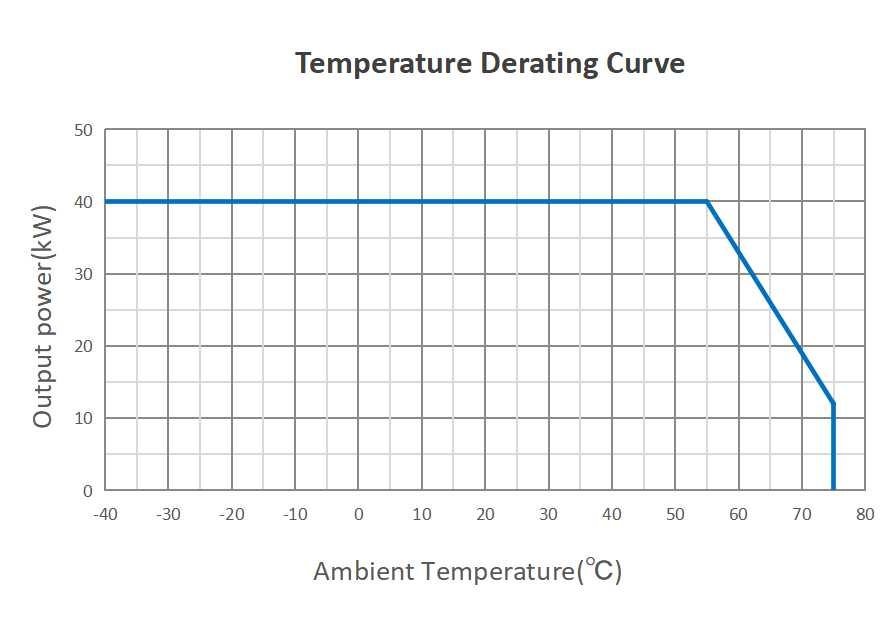

| Environmental Conditions | Operating Temperature | -40℃～55℃～75℃ (Full Power below 55℃, Derating to 30% at 75℃) |
| Altitude | 5000madditional100m | |
| MTBF | >1000000 hours | |
| Basic Indicators | Size(W×D×H) | 300×437.5×84mm |
| Weight | <16.5kg | |
| Efficiency(full load) | >97% | |
| Noise | ≤65dB | |
| Cooling Method | Fan cooling | |
| Standby Power consumption | <13W | |
| Communication | CAN bus & RS485 | |
| Parallel Quantity | ≤60 pieces | |
| Indicator | Green: normal operation Yellow: alarm Red: fault |
