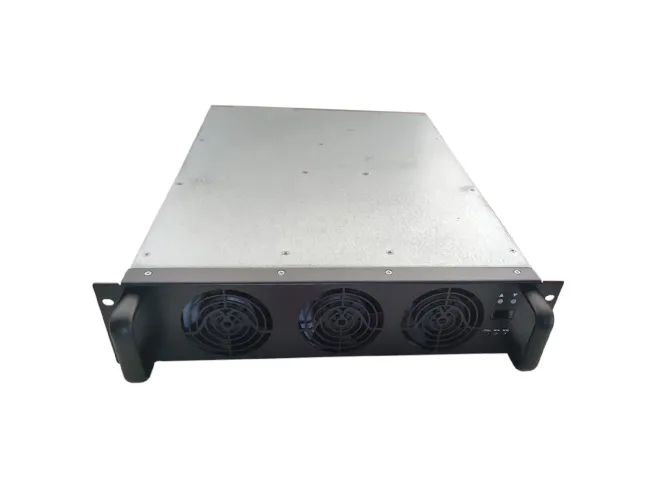

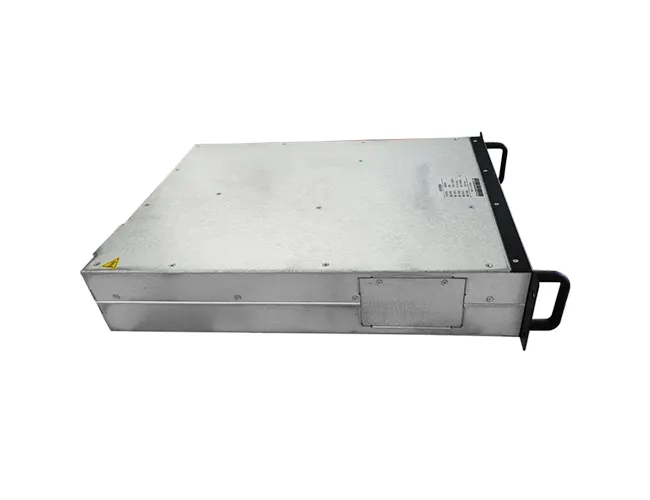

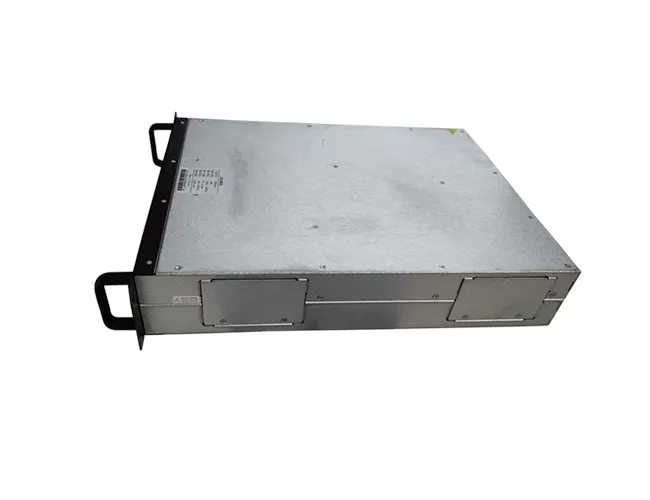

The MXC100080B is an 80kW high-frequency isolated bidirectional DC-DC converter module for V2G and high-power EV charging systems. Based on a single-stage topology with full SiC devices, it delivers high efficiency, fast response, and accurate voltage and current control. Supporting a wide 200–1000V range and 250A output, with fan cooling and CAN communication, it is ideal for EV chargers, energy storage systems, and industrial DC power platforms.
| Module | MXC100080B | |
| Input Characteristics | Input Voltage | 750Vdc-850Vdc |
| Input Current | Max 102A | |
| Output Characteristics | Output Power | 80kW |

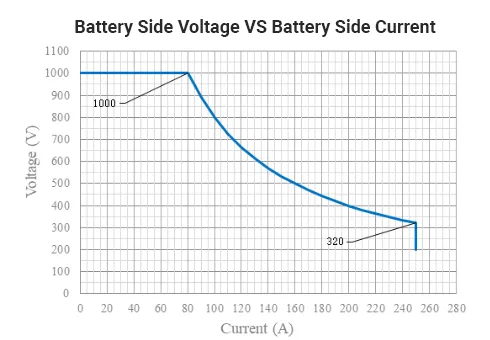

| Voltage Range | 200～1000Vdc | |
| Current Range | Max 250A | |
| Voltage Regulation accuracy | ≤±0.5% | |
| Stabilized Current accuracy | ≤±1% (Output loading 20%~100% rated range) | |
| Ripple Peak | ≤1% | |
| Current Sharing Imbalance | ≤5% | |
| Environmental Conditions | Operating Temperature | －30℃~＋75℃, output derating at above 50℃ |
| Altitude | ≤2000m, output derating above 2000m | |
| Basic Indicators | Size(W×D×H) | 400×485×87mm |
| Weight | <20kg | |
| Cooling Method | Fan cooling | |
| Communication | CAN Communication | |
| Parallel | <60 | |
| Efficiency | >98.5% |
