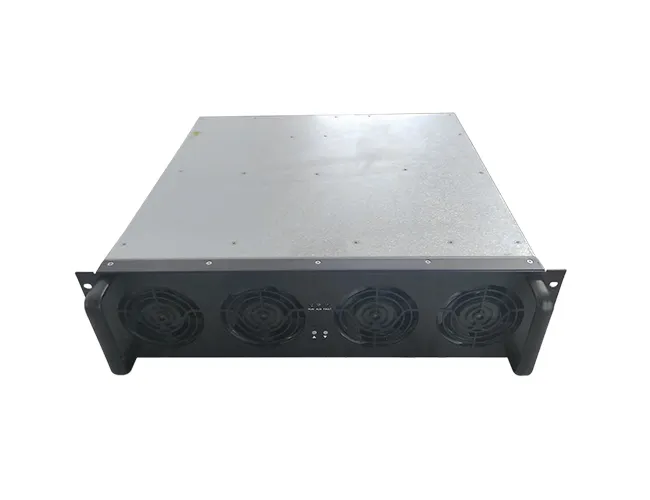

The 60kW 1000V DC module provides high voltage and current conversion for hydrogen production systems and fast EV charging applications. Its wide adjustable output and stable high-current performance ensure reliable operation for electrolyzers, charging equipment, and industrial DC loads. With air-cooled thermal design, >97% efficiency, CAN communication, and a compact structure, it supports easy integration while reducing maintenance—making it ideal for OEMs, system builders, and clean-energy projects across the U.S. and Europe.
| Module | MXR100060B-DC | |
| Input Characteristics | Input Voltage | 200Vdc-950Vdc, DC+PE |
| Input Current | <160A | |
| Output Characteristics | Output Power | 60kW |

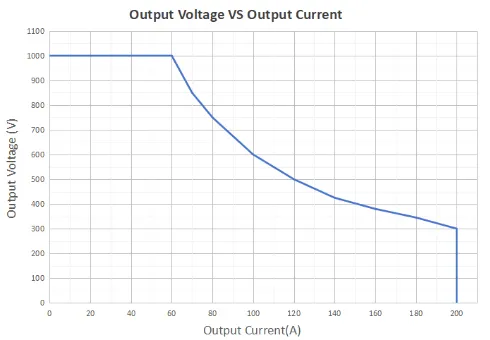

| Voltage Range | 0～1000Vdc Continuously Adjustable | |
| Current Range | 0～200A Continuously Adjustable | |
| Voltage Regulation accuracy | ≤±0.5% | |
| Stabilized Current accuracy | ≤±1% | |
| Ripple Peak | ≤1% | |

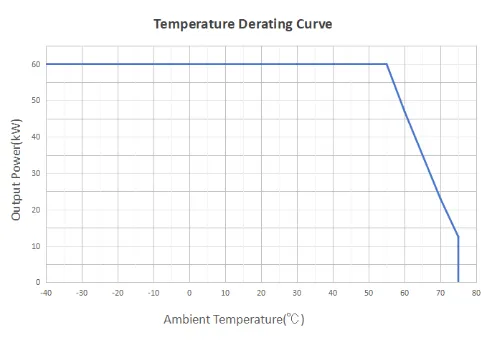

| Environmental Conditions | Operating Temperature | -40℃～55℃～75℃ (under 55℃ full power, 75℃ derate to 25%) |
| Altitude | 5000m | |
| MTBF | >1000000 hours | |
| Basic Indicators | Size(W×D×H) | 440×430×125mm |
| Weight | <26kg | |
| Cooling Method | Forced air cooling | |
| Communication | CAN | |
| Noise | ≤65dB (Ambient temperature 25℃, full load) | |
| Efficiency (Peak Value) | >97% | |
