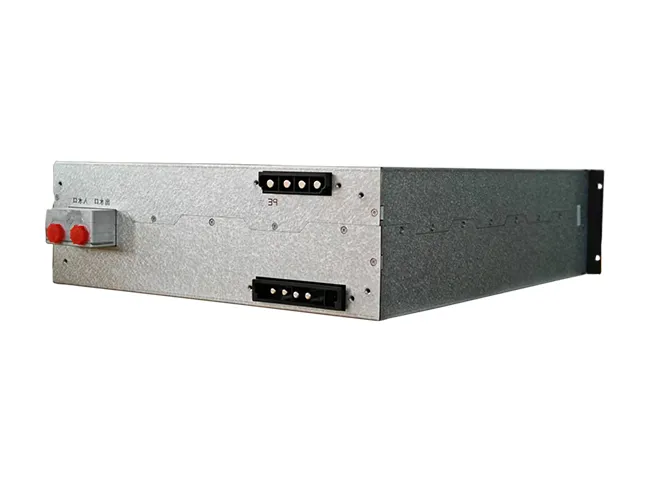

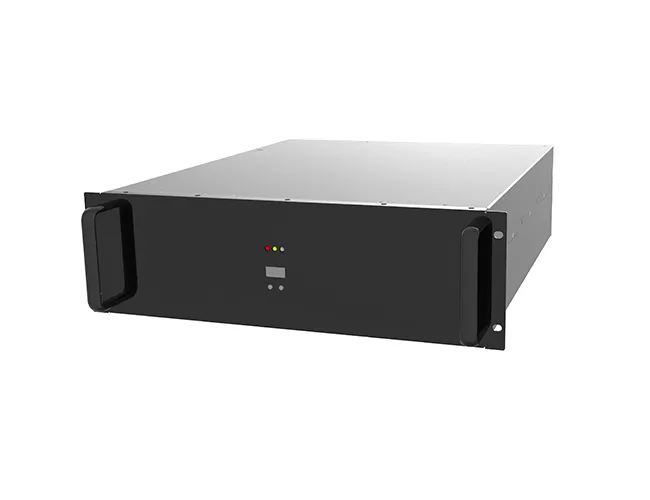

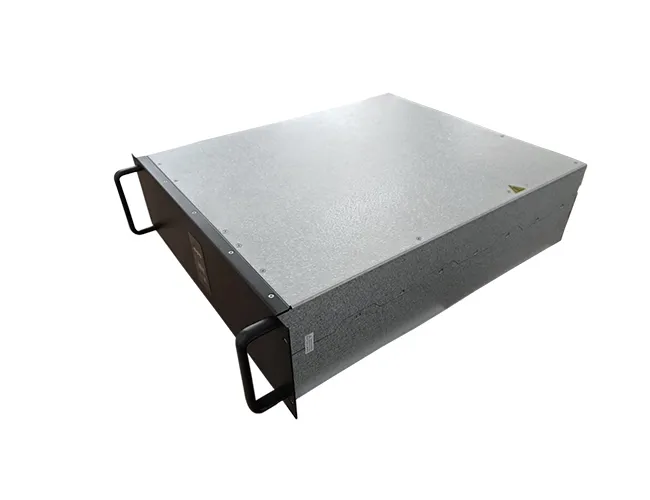

The MXR6060BL is a 60kW liquid-cooled SiC AC-DC converter module designed for high-current, low-voltage applications. Featuring a 0–60V output range and up to 1200A current, it delivers precise power control with excellent stability. Advanced digital control and a high-frequency design enable compact size, high power density, and a power factor above 0.99, making it ideal for demanding industrial and special DC power systems.
| Product Model | MXR6060BL | |
| Input Characteristics | Voltage Range | 270Vac～480Vac，3P+PE |
| Current Range | ＜105 Arms；45Hz～65Hz | |
| Power Factor | >0.99(Load≥50%) | |
| Current Harmonics | <5%(Loading≥50%) | |

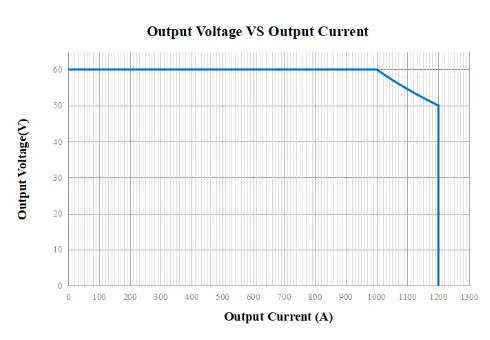

| Output Characteristics | Output Power | 60kW |
| Voltage Range | 0-60Vdc | |
| Current Range | 0-1200A | |
| Stabilized Voltage Precision | <±1% | |
| Steady flow accuracy | ＜±1％ | |
| Voltage Ripple | 2V | |

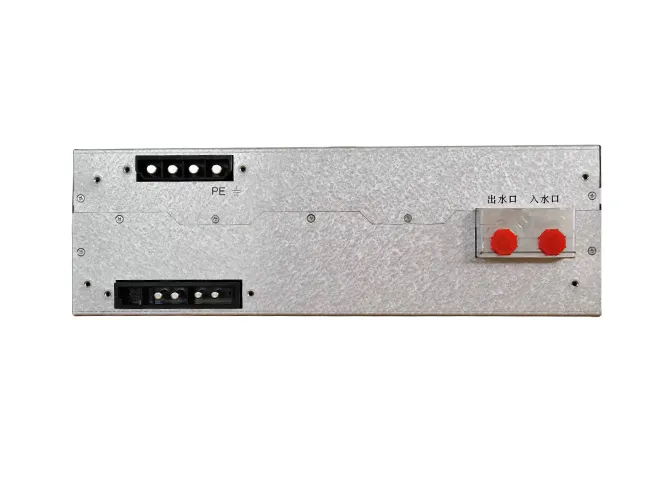

| Liquid System | Liquid Flow | ≥10L/min |
| Water Pressure Drop | ＜40kPa @10LPM | |
| Maximum Inlet Pressure | 500kPa | |
| Coolant | Deionized Water, Purified Water | |
| Inlet Temperature | 10～35℃ | |
| Environmental Specifications | Operating Temperature | Temperature: 0～50℃; humidity：＜95% |
| Storage Temperature | Temperature: 0～50℃; humidity：＜95% | |
| Altitude | 2000m | |
| Basic Specifications | Size(W×D×H) | 440×450×125mm |
| Weight | <38kg | |
| Peak Efficiency | 95.00% | |
| Cooling Mode | Liquid cooling | |
| Communication Method | CAN 485 | |
| Parallel Quantity | ≤60 pieces | |
