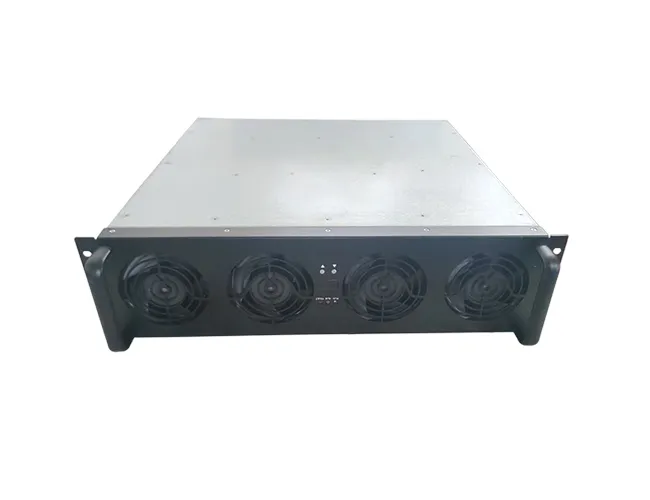

The 60kW 1500V fan-cooled DC-DC power module delivers high-efficiency, stable high-voltage conversion for EV fast charging station, hydrogen production systems, and industrial DC power applications. With wide input/output ranges, precise voltage regulation, and reliable CAN control, it ensures consistent performance in demanding environments. Its compact design, low noise, and strong thermal capability make it ideal for modern high-power charging and renewable energy projects.
| Module | MXR150060B-DC | |
| Input Characteristics | Input Voltage | 200Vdc-950Vdc, DC+PE |
| Input Current | <160A | |
| Output Characteristics | Output Power | 60kW |

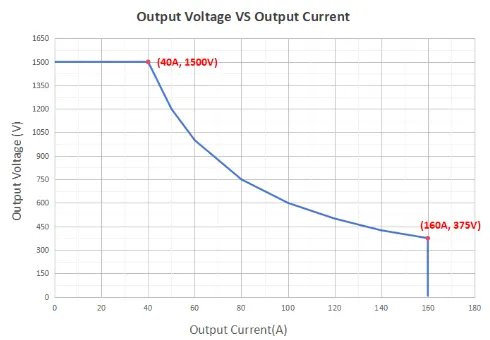

| Voltage Range | 0～1500Vdc Continuously Adjustable | |
| Current Range | 0～160A Continuously Adjustable | |
| Voltage Regulation accuracy | ≤±0.5% | |
| Stabilized Current accuracy | ≤±1% | |
| Ripple Peak | ≤1% | |

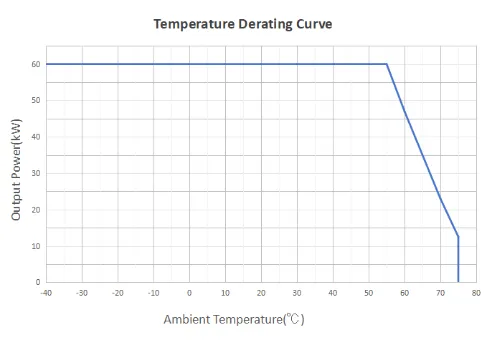

| Environmental Conditions | Operating Temperature | -40℃～55℃～75℃ (under 55℃ full power, 75℃ derate to 25%) |
| Altitude | 5000m | |
| MTBF | >1000000 hours | |
| Basic Indicators | Size(W×D×H) | 440×430×125mm |
| Weight | <26kg | |
| Cooling Method | Forced air cooling | |
| Communication | CAN | |
| Noise | ≤65dB (Ambient temperature 25℃, full load) | |
| Efficiency (Peak Value) | >97% | |
