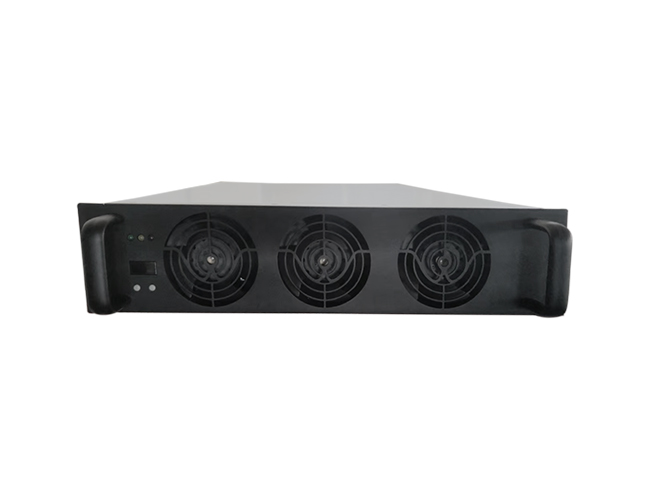

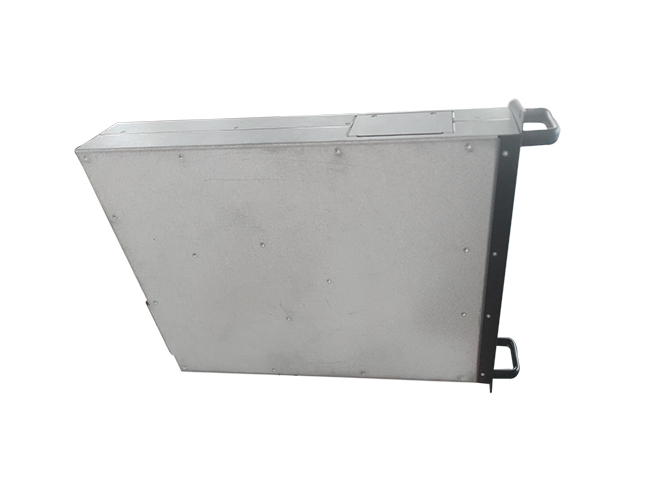

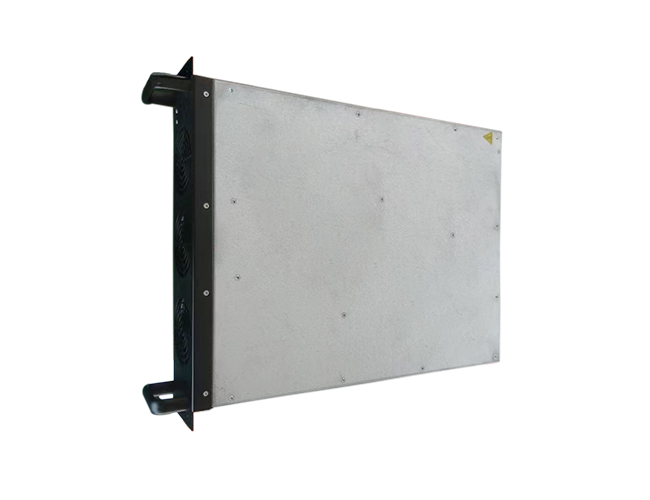

MXC150050B-H is a high-frequency isolated 50kW bidirectional DC-DC module designed for advanced energy storage and microgrid systems. It supports ultra-high bus voltage up to 1500V and an ultra-wide operating range of 300–1500V. With efficiency exceeding 98.5%, it minimizes energy loss. The module features a full potting process for enhanced insulation, environmental resistance, and long-term reliability. Its isolated topology ensures safety, while supporting bidirectional power flow for fast response in charging and discharging applications.
| Product Model | MXC150050B-H | |
| Bus Side | Voltage Range | 300~1500Vdc |
| Stabilized Voltage Precision | ≤±0.5% | |
| Stabilized Current Precision | ≤±1% (output current 20%~100% rated current) | |
| Current Imbalance | ≤5% | |
| Battery Side | Output Power | 50kW |
| Voltage Range | 300-1500Vdc | |
| Stabilized Voltage Precision | ≤±0.5% | |
| Stabilized Current Precision | ≤±1% (output current 20%~100% rated current) | |
| Ripple Peak Value | ≤1% | |
| Current Imbalance | ≤5% | |
| Environmental Specifications | Operating Temperatue | －20℃～＋75℃，Above 50℃will be derated. |
| Altitude | ≤2000m，Above 2000m will be derated. | |
| Basic Specifications | Size(W×D×H) | 345×460×87mm |
| Weight | <17.5kg | |
| Efficiency(full load) | >98.5% | |
| Isolated Method | High Frequency Isolated | |
| Cooling Mode | Air cooling | |
| Communication Method | CAN bus | |
| Parallel Module Quantity | ≤60pcs | |
