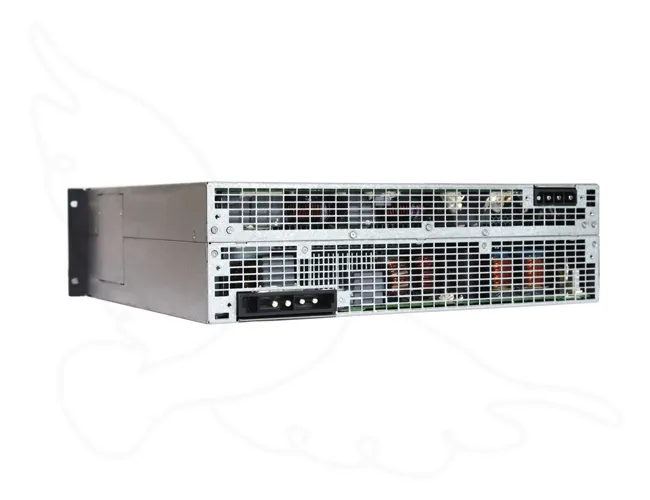

The MXR100050B-SE AC to DC module is a high-speed charging solution for electric vehicles. It is specifically designed for EV charging stations and can convert AC to DC with a 50kw power output. Its low noise operation and high protection design ensure a safe and smooth charging experience. The module features stable performance and reliable operation for demanding fast-charging applications. Thank you for considering our product for your charging needs.
| Module | MXR100050B-SE | |
| Input Characteristics | Input Voltage | 260-650Vac |
| Input Current | ≤70A | |
| Grid frequency | 45-65Hz | |
| Power Factor | >0.99(Load≥50%) | |
| ITHD | ≤5%(Load≥50%) | |
| Output Characteristics | Output Power | 50kW |
| Voltage Range | 200~1000Vdc | |
| Current Range | Maximum: 167 A | |
| Rated Current | 50 A | |
| Voltage Regulation accuracy | ≤±0.3% | |
| Stabilized Current accuracy | ≤±0.3% | |
| Current Sharing Imbalance | ≤0.3% | |
| Environmental Conditions | Full load working temperature | –40°C to +75°C (Output power derating at rated output voltage when the temperature is higher than 55°C.) |
| Storage Temperature | -40℃～75℃ | |
| Relative Humidity | 5%-95% RH ,Non-condensation | |
| Altitude | ≤2000m (When altituide is above 2000m, derating is required) | |
| MTBF | >1000000 hours | |
| Basic Indicators | Size(W×D×H) | 440×380×125mm |
| Weight | ≤23kg | |
| Efficiency(full load) | >95.5% | |
| Cooling Method | Forced air cooling | |
| Protection Level | IP20 | |
| Standby Power consumption | ≤13.5W | |
| Communication | CAN bus | |
| Parallel Quantity | ≤60 pieces | |
| Indicator | Green: normal operation Yellow: alarm Red: fault LED digital tube | |
Our products are widely used in automotive, electric power, railway, metallurgy, communications and other fields, and its performance cases are spread all over the country and around the world.
