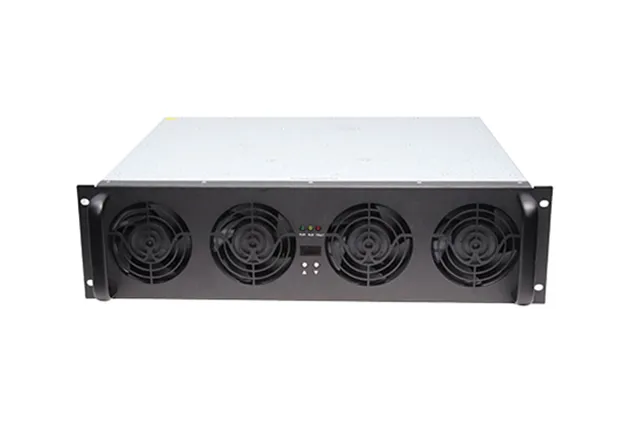

The MXR150050B-DC EV Charger Power Module is a DC-to-DC conversion module designed for car charging stations and large equipment charging stations. It efficiently convert power to meet diverse charging requirements. The module supports multiple communication protocols, including 1 CAN bus and 1 RS485 interface (optional protocol conversion module supporting Modbus TCP), enabling convenient intelligent control and real-time monitoring.
Output voltage VS Output current curve
Input voltage VS Input current curve
Power VS Ambient temperature derating curve
| Product Model | MXR150050B-DC | |
| Input Side | Voltage Range | 1080Vdc-1500Vdc |
| Current Range | 47.5A | |
| Output Side | Output Power | 50kW |
| Voltage Range | 200VDC ~ 920VDC | |
| Current Range | 112A | |
| Stabilized Voltage Precision | ≤±0.5% | |
| Stabilized Current Precision | ≤±1% (output loading 20%~100% rated range) | |
| Ripple Peak | ≤1% | |
| Current Sharing Imbalance | ≤5% | |
| Environmental Conditions | Operating Temperatue | -40℃～+75℃, output derating above 50℃ |
| Altitude | ≤ 2000m, derating above 2000m | |
| Basic Index | Size(W×D×H) | 345×460×87mm |
| Weight | <20kg | |
| Efficiency(full load) | >98.5% | |
| Isolated Method | High Frequency Isolation | |
| Cooling Mode | Air Cooling | |
| Communication Bus Protocol | 1 CAN bus, 1 RS485 (optional protocol conversion module, support Modbus TCP) | |
| Protection level | IP20 | |
| Parallel Module Quantity | <60pcs | |
