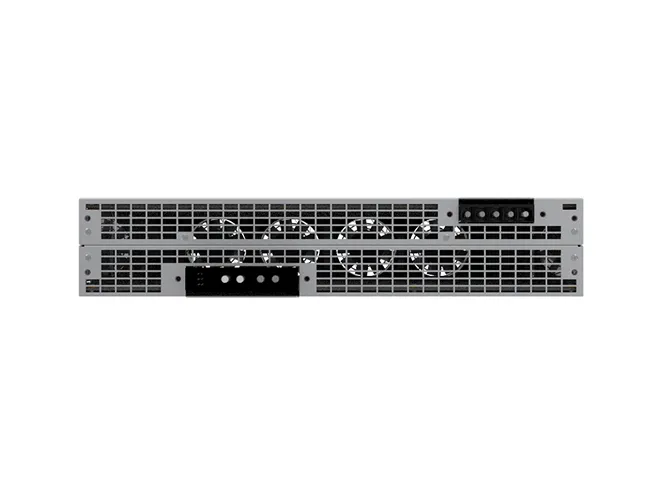

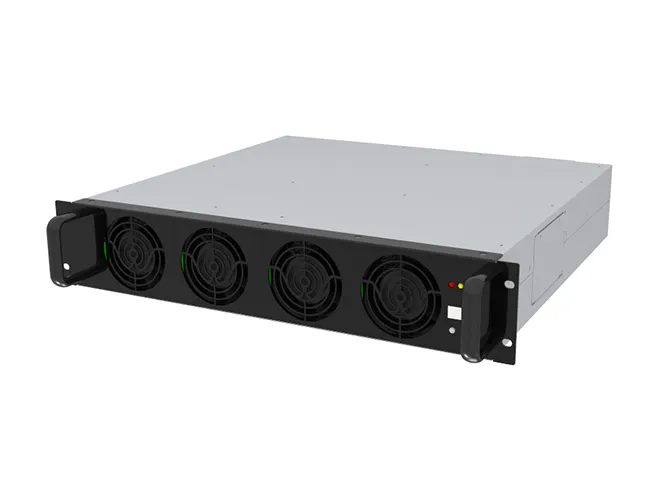

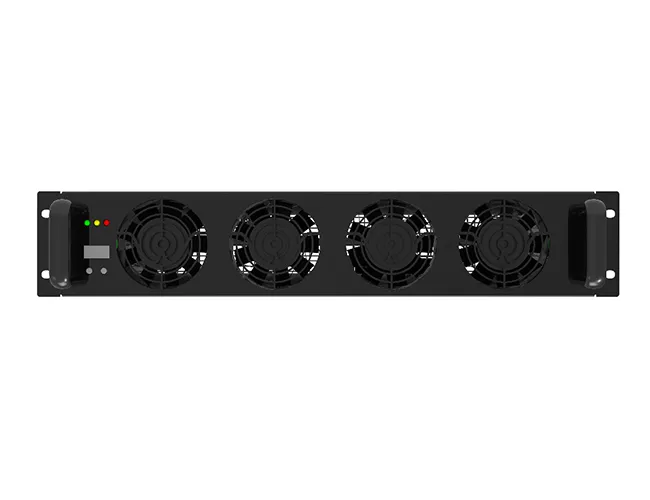

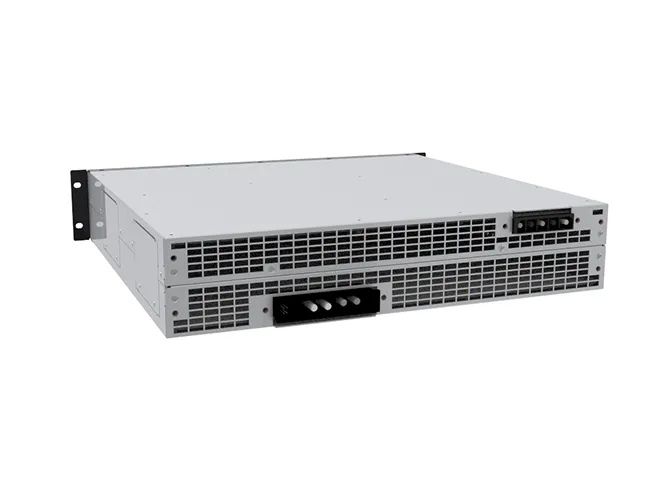

The 120kW 200A CAN Bus SiC isolated DC DC converter module is engineered for high-power DC fast charging and megawatt-scale energy systems. Its single-stage SiC topology achieves >98.5% efficiency, reducing thermal stress and cooling costs under continuous full load. With wide voltage adaptability, precise current control, and CAN bus communication, the module enables compact system design, fast integration, and reliable parallel operation for scalable DC charging architectures.
| Module | MXR1000120B-DC | |

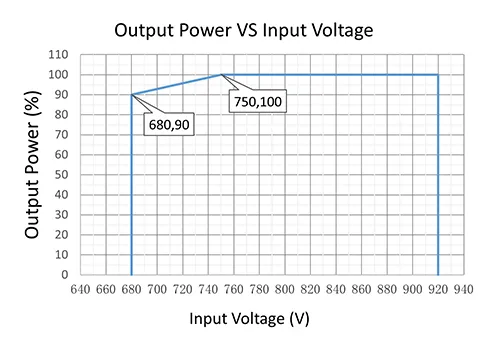

| Input Characteristics | Input Voltage | 680Vdc-920Vdc |
| Input Current | Max 165A | |
| Output Characteristics | Output Power | 120kW |
| Voltage Range | 200～1000Vdc | |
| Current Range | Max 200A | |
| Voltage Regulation accuracy | ≤±0.5% | |
| Stabilized Current accuracy | ≤±1% (Output loading 20%~100% rated range) | |
| Ripple Peak | ≤1% | |
| Current Sharing Imbalance | ≤5% | |
| Environmental Conditions | Operating Temperature | －20℃~＋75℃, output derating at above 50℃ |
| Altitude | ≤2000m, output derating above 2000m | |
| Basic Indicators | Size(W×D×H) | 440×422×87mm |
| Weight | <20kg | |
| Cooling Method | Fan cooling | |
| Isolated Method | High Frequency Isolated | |
| Communication | CAN Bus | |
| Parallel | <60 | |
| Efficiency | >98.5% |
