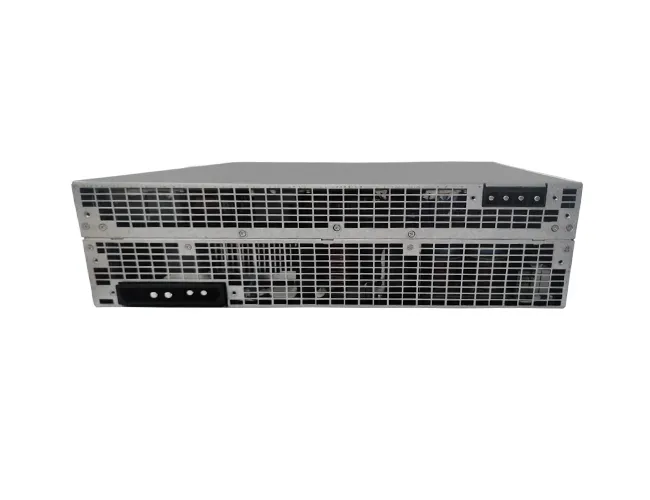

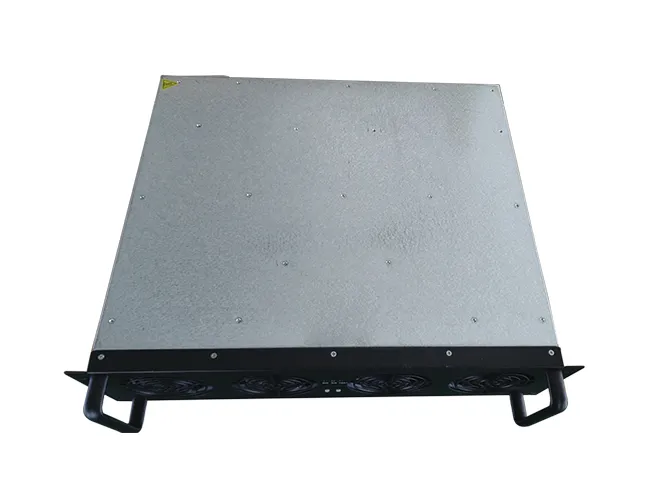

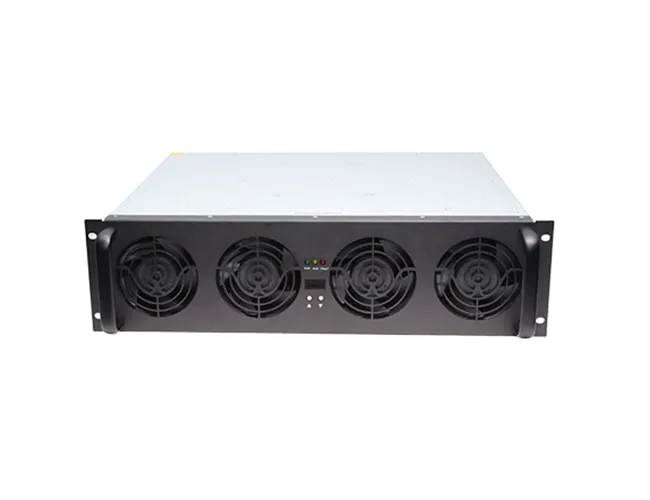

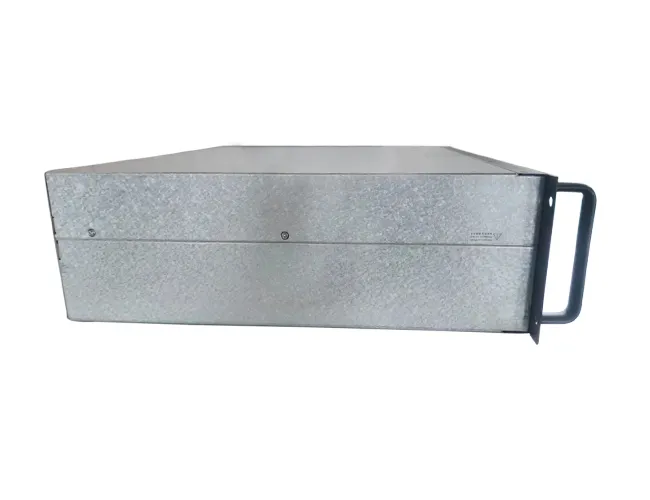

The MXR850100B-DC is a 100kW DC-DC power module built for engineers who value efficiency, stability, and scalability. Delivering >98.5% efficiency with a wide 400–1500VDC input and precise 750–850VDC output, it minimizes energy loss and thermal stress. Fan cooling, CAN communication, and excellent current sharing enable easy parallel expansion—making it a reliable, cost-effective choice for industrial solid oxide fuel cell systems and high-power DC applications.
| Module | MXR850100B-DC | |
| Input Characteristics | Input Voltage | 400Vdc-1500Vdc |
| Max Current | 100A | |
| Output Characteristics | Output Power | 100kW |
| Voltage Range | 750VDC -850VDC | |
| Max Current | 133A | |
| Stabilized Voltage Precision | ≤±0.5％ | |
| Stabilized Current Precision | ≤±1％（output load 20％～100％ rated range） | |
| Ripple Peak | ≤ 1％ | |
| Current Sharing Imbalance | ≤ 5％ | |
| Environmental Conditions | Operating Temperature | -20℃~+75℃, derating above 50℃ |
| Altitude | ≤2000 m, Derating above 2000m | |
| Basic Indicators | Dimensions | 440mm (W) * 422mm (D) * 87mm (H) |
| Weight | <23kg | |
| Efficiency (Peak Value) | >98.5% | |
| Cooling Mode | Air Cooling | |
| Communication | CAN Communication | |
| Protection level | IP20 | |
| Parallel | <60 pcs | |
