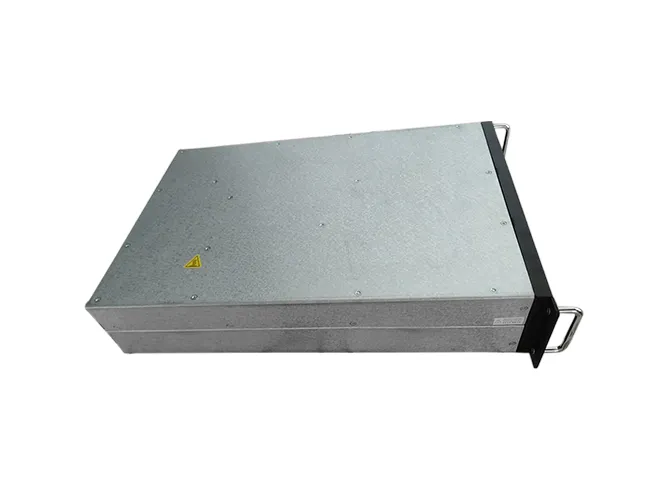

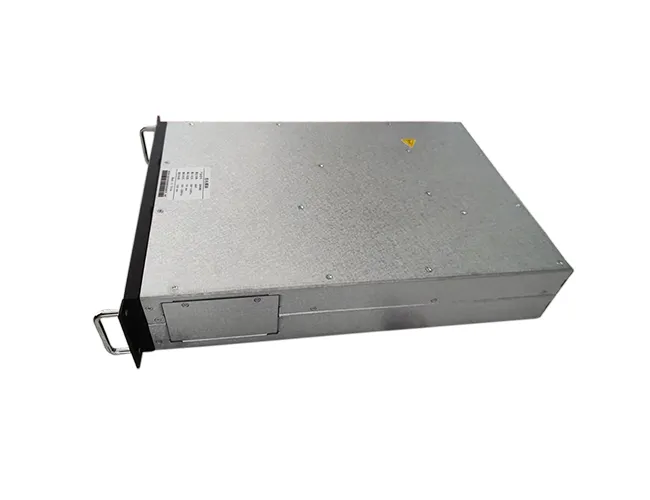

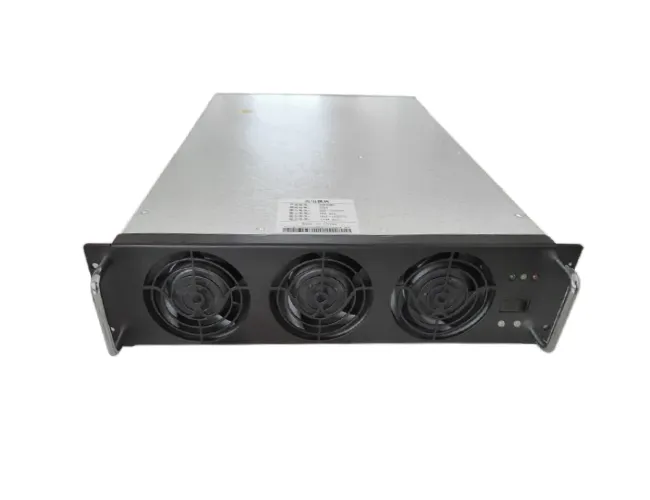

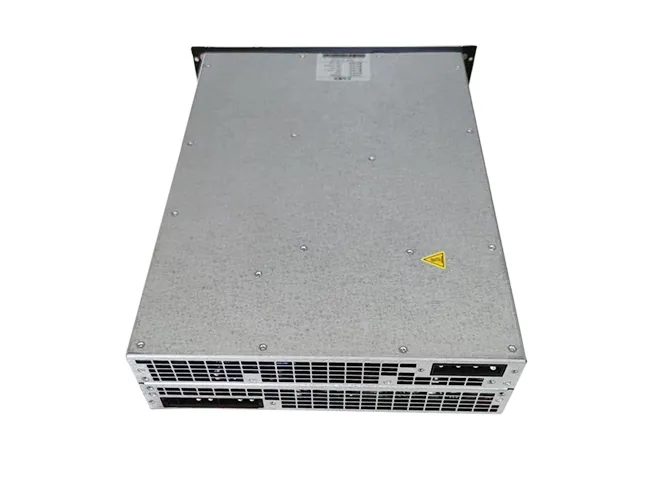

The MXC850100B is a 100kW bidirectional DC/DC module tailored for 850V ESS platforms, featuring fast transient response and low-ripple output to protect high-capacity batteries. Its optimized conversion design enhances partial-load efficiency, while the compact structure allows flexible modular expansion. Built with stable digital control, it delivers reliable performance for commercial storage and high-power DC systems.

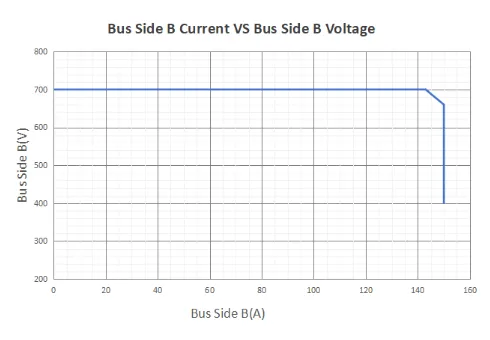

Bus Side B Current VS Bus Side B Voltage
Bus Side A Current VS Bus Side A Voltage

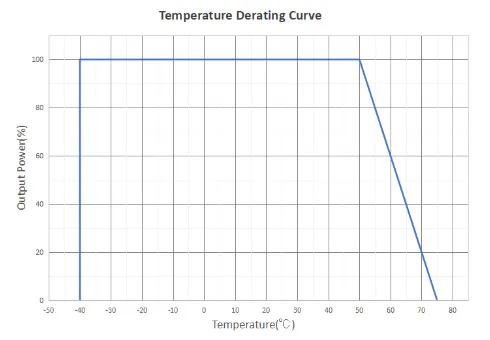

Temperature Derating Curve
| Module | MXC850100B | |
| Input Characteristics | Voltage Range | 700VDC～850VDC (Special customization available) |
| Maximum Current | 120A | |
| Stabilized Voltage Precision | ≤±0.5% | |
| Stabilized Current Precision | ≤±1％ (Output Load 20% - 100%Rated Range) | |
| Current Imbalance | ≤5% | |
| Output Characteristics | Output Power | 100kW |
| Voltage Range | 400VDC～700VDC (Special customization available) | |
| Maximum Current | 150A | |
| Stabilized Voltage Precision | ≤±0.5% | |
| Stabilized Current Precision | ≤±1％ (Output Load 20% - 100%Rated Range) | |
| Ripple Peak Value | ≤1% | |
| Current Imbalance | ≤5% | |
| Environmental Conditions | Operating Temperature | －40℃～＋75℃，Above 50℃ will be derated |
| Altitude | ≤2000m，Above 2000m will be derated | |
| Basic Indicators | Dimension | 345mm*500mm*87mm (W*D*H) |
| Weight | <20kg | |
| Efficiency | >98.5% | |
| Isolation Method | High Frequency Isolation | |
| Cooling Method | Fan Cooling | |
| Communication | CAN Bus | |
| Parallel | <60 | |
